4-2273-M
AR Series - Twist Lock Reflector
LED
SOLERIQ S19
Diameter
111 mm
Hole/W
23 mm
Height
64.6 mm

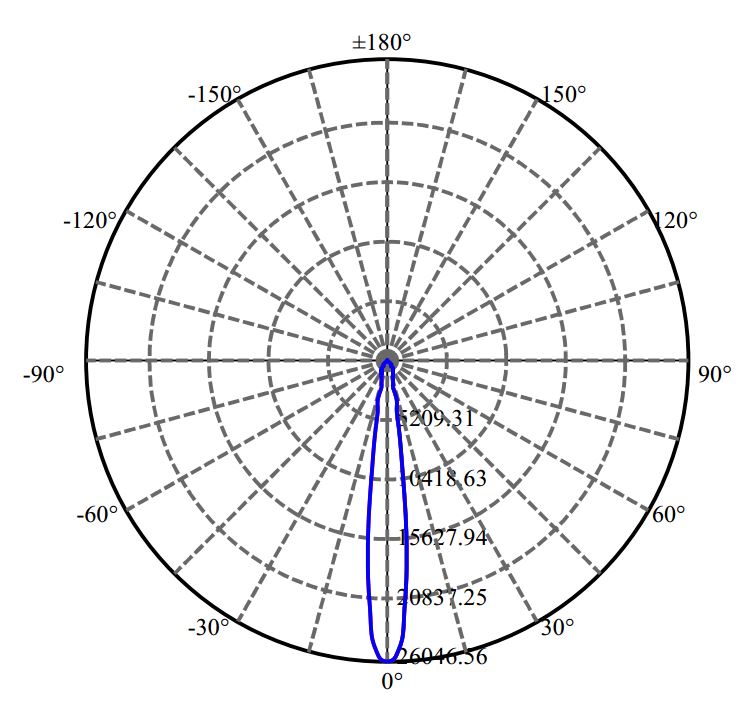

FWHM
11°
LES
13.0
Material
AL
Fastening
Holder
Application
Spot Light
Remark
Description
- Compatible for Nata optic parts. Fixation by twist lock, firm lock, low assembling cost!
- This range is patented products.
Compatible LED
| Brand | LED | OD/L | Hole/W | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| Bridgelux | V13B | 111 | 23 | 64.6 | 11° | 92.70.131.00 | |
| Bridgelux | BXRV-DR-1830-H-3000-A-13 | 111 | 23 | 64.6 | 11° | 92.70.135.00 | |
| Bridgelux | V9-HD | 111 | 23 | 64.6 | 8° | 92.70.131.00 | |
| Tridonic | SLE G7 13MM | 111 | 23 | 64.6 | 10° | 92.70.131.00 | |
| Tridonic | SLE G7 15MM | 111 | 23 | 64.6 | 11° | 92.70.131.00 | |
| SEOUL | SAWx15 | 111 | 23 | 64.6 | 11° | 92.70.131.00 | |
| OSRAM OPTO | SOLERIQ S15 | 111 | 23 | 64.6 | 11° | 92.70.131.00 | |
| OSRAM OPTO | SOLERIQ S13 | 111 | 23 | 64.6 | 9° | 92.70.131.00 | |
| Nichia | NFCWJ120B-V3 | 111 | 23 | 64.6 | 11° | 92.70.135.00 | |
| Nichia | NVEWJ048Z-V1 | 111 | 23 | 64.6 | 11° | 92.70.135.00 | |
| Nichia | NFCWJ108B-V3 | 111 | 23 | 64.6 | 11° | 92.70.135.00 | |
| Nichia | NFCWD096B-V3 | 111 | 23 | 64.6 | 10° | 92.70.135.00 | |
| Nichia | NFCWD084B-V2 | 111 | 23 | 64.6 | 11° | 92.70.135.00 | |
| Cree | CMT1922 | 111 | 23 | 64.6 | 11° | 92.70.131.00 | |
| Cree | CXA1830 | 111 | 23 | 64.6 | 11° | 92.70.129.00 | |
| Cree | CXA2520 | 111 | 23 | 64.6 | 13° | 92.70.134.00 | |
| Cree | CXA1820 | 111 | 23 | 64.6 | 9° | 92.70.129.00 | |
| Lumileds | 1208 | 111 | 23 | 64.6 | 11° | 92.70.135.00 | |
| Luminus | CXM-11-AC30 | 111 | 23 | 64.6 | 9° | 92.70.131.00 | |
| Luminus | CXM-14-AC40 | 111 | 23 | 64.6 | 12° | 92.70.131.00 | |
| Citizen | CLU038 | 111 | 23 | 64.6 | 11° | 92.70.131.00 | |
| BMTC | MA-1919 20W | 111 | 23 | 64.6 | 12° | 92.70.131.00 |
Accessory
