4-2267-M
AR Series - Twist Lock Reflector
LED
V13B
Diameter
111 mm
Hole/W
22.4 mm
Height
64.2 mm

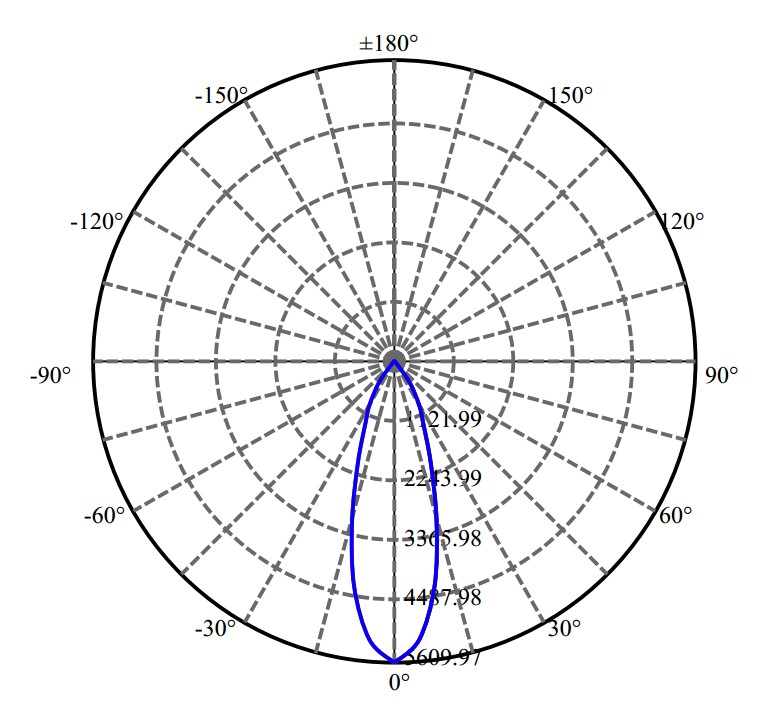

FWHM
32°
LES
13.0
Material
AL
Fastening
Holder
Application
Spot Light
Remark
Description
- Compatible for Nata optic parts. Fixation by twist lock, firm lock, low assembling cost!
- This range is patented products.
Compatible LED
| Brand | LED | OD/L | Hole/W | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| OSRAM OPTO | SOLERIQ S19 | 111 | 22.4 | 64.2 | 40° | 92.70.134.00 | |
| OSRAM OPTO | SOLERIQ S15 | 111 | 22.4 | 64.2 | 33° | 92.70.131.00 | |
| OSRAM OPTO | SOLERIQ S13 | 111 | 22.4 | 64.2 | 30° | ||
| Tridonic | SLE G7 15MM | 111 | 22.4 | 64.2 | 36° | 92.70.131.00 | |
| Tridonic | SLE G7 13MM | 111 | 22.4 | 64.2 | 33° | 92.70.131.00 | |
| Bridgelux | BXRV-DR-1830-H-3000-A-13 | 111 | 22.4 | 64.2 | 35° | 92.70.135.00 | |
| Bridgelux | V9-HD | 111 | 22.4 | 64.2 | 24° | 92.70.131.00 | |
| Luminus | CXM-14-AC40 | 111 | 22.4 | 64.2 | 36° | 92.70.131.00 | |
| Luminus | CXM-11-AC30 | 111 | 22.4 | 64.2 | 30° | 92.70.131.00 | |
| Nichia | NFCWD096B-V3 | 111 | 22.4 | 64.2 | 33° | 92.70.135.00 | |
| Nichia | NFCWJ108B-V3 | 111 | 22.4 | 64.2 | 35° | 92.70.135.00 | |
| Nichia | NFCWJ120B-V3 | 111 | 22.4 | 64.2 | 35° | 92.70.135.00 | |
| Nichia | NVEWJ048Z-V1 | 111 | 22.4 | 64.2 | 35° | 92.70.135.00 | |
| Nichia | NFCWD084B-V2 | 111 | 22.4 | 64.2 | 33° | 92.70.135.00 | |
| Cree | CMT1922 | 111 | 22.4 | 64.2 | 35° | 92.70.131.00 | |
| Cree | CXA2520 | 111 | 22.4 | 64.2 | 40° | 92.70.134.00 | |
| Cree | CXA1816 | 111 | 22.4 | 64.2 | 29° | 92.70.129.00 | |
| Lumileds | 1205 | 111 | 22.4 | 64.2 | 33° | 92.70.135.00 | |
| Lumileds | 1208 | 111 | 22.4 | 64.2 | 35° | 92.70.135.00 | |
| SEOUL | SAWx15 | 111 | 22.4 | 64.2 | 34° | 92.70.131.00 | |
| Citizen | CLU038 | 111 | 22.4 | 64.2 | 35° | 92.70.131.00 | |
| BMTC | MA-1919 20W | 111 | 22.4 | 64.2 | 34° | 92.70.131.00 |
Accessory
