2-2323-M
AV Series - 98% Efficiency Reflector
LED
LC026D
Diameter
75 mm
Hole/W
19 mm
Height
37.4 mm

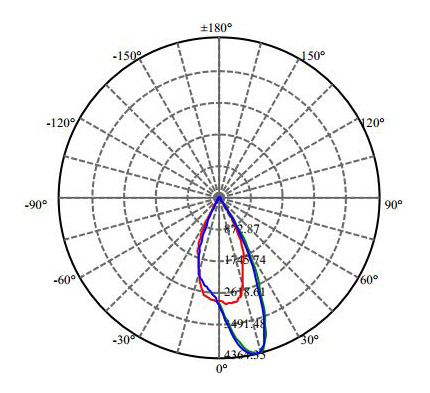

FWHM
P16°
LES
15.0
Material
AL
Fastening
None
Application
Spot Light
Remark
Description
- The segment reflector material is coated with a PVD silver layer, utilizing Alanod VD technology from MIRO-SILVER®, which boosts reflector efficiency by 5-8% compared to traditional spun high purity aluminum reflectors, enabling higher energy efficiency classes for the luminaires.
- Diameters: D75, D85, D92, D111.
- FWHM: 15°, 24°, 36°, 60°, 49*49°, 40*67°, Asymmetric 60°.
- Material: Alanod Miro Silver
Product Video
Compatible LED
| Brand | LED | OD/L | Hole/W | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| Lumileds | 1208 | 75 | 19 | 37.4 | P16° | 92.70.135.00 | |
| Lumileds | 1205 | 75 | 19 | 37.4 | P16° | 92.70.135.00 | |
| Citizen | CLU038 | 75 | 19 | 37.4 | P15° | 92.70.131.00 | |
| Cree | CXA1820 | 75 | 19 | 37.4 | P13° | 92.70.129.00 | |
| Luminus | CXM-14-AC40 | 75 | 19 | 37.4 | P14° | 92.70.131.00 | |
| SAMSUNG | LC033D | 75 | 19 | 37.4 | P16° | 92.70.131.00 | |
| SEOUL | SAWx15 | 75 | 19 | 37.4 | P15° | 92.70.131.00 | |
| Tridonic | SLE G7 13MM | 75 | 19 | 37.4 | P13° | 92.70.131.00 | |
| Tridonic | SLE G7 15MM | 75 | 19 | 37.4 | P17° | 92.70.131.00 |
