AV-A Series

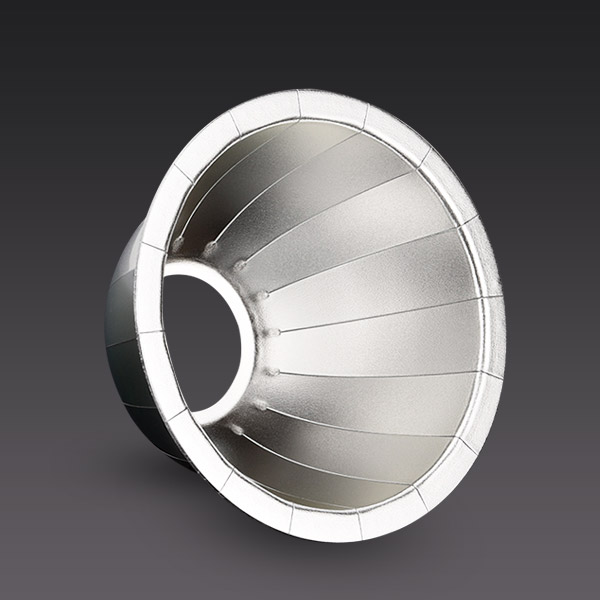

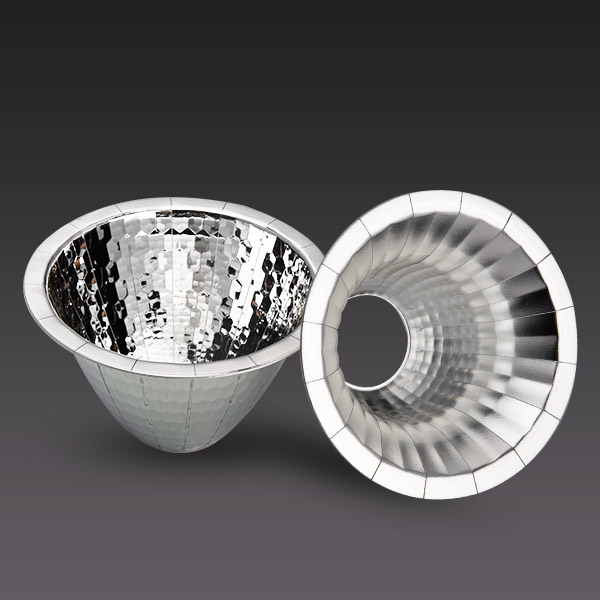

98% Efficiency Reflector
- The segment reflector material is coated with a PVD silver layer, utilizing Alanod VD technology from MIRO-SILVER®, which boosts reflector efficiency by 5-8% compared to traditional spun high purity aluminum reflectors, enabling higher energy efficiency classes for the luminaires.
- Diameters: D75, D85, D92, D111.
- FWHM: 15°, 24°, 36°, 60°, 49*49°, 40*67°, Asymmetric 60°.
- Material: Alanod Miro Silver
Product Video
Application
Retail, Shops, Exhibition Area, Office.
Product List
| Model | OD | Hole | H | FWHM | Material | |
|---|---|---|---|---|---|---|
| 1-1765-LM | 45 | 18 | 19 | ° | AL | |
| 1-1762-LM | 45 | 18 | 19 | 18.6° | AL | |
| 1-1763-LM | 45 | 18 | 19 | 24.4° | AL | |
| 1-1764-LM | 45 | 18 | 19 | 38.6° | AL | |
| 1-1769-LM2 | 50 | 18 | 21.6 | ° | AL | |
| 1-1769-LM | 50 | 23.5 | 21.6 | ° | AL | |
| 1-1766-LM2 | 50 | 18 | 21.6 | 19.0° | AL | |
| 1-1766-LM | 50 | 23.5 | 21.6 | 22.8° | AL | |
| 1-1767-LM2 | 50 | 18 | 21.6 | 23.8° | AL | |
| 1-1767-LM | 50 | 23.5 | 21.6 | 26° | AL | |
| 1-1768-LM | 50 | 23.5 | 21.6 | 37.8° | AL | |
| 2-3121-LM | 65 | 25 | 34 | ° | AL | |
| 2-3118-LM | 65 | 25 | 34 | 19.2° | AL | |
| 2-3119-LM | 65 | 23.5 | 34 | 25.8° | AL | |
| 2-3120-LM | 65 | 25 | 34 | 33.6° | AL | |
| 2-3125-LM | 69 | 25 | 35 | ° | AL | |
| 2-3122-LM | 69 | 25 | 35 | 17.8° | AL | |
| 2-3123-LM | 69 | 25 | 35 | 26.4° | AL | |
| 2-3124-LM | 69 | 25 | 35 | 36.2° | AL | |
| 2-2904-LM3 | 75 | 25 | 43 | 17.1° | AL | |
| 2-2906-LM2 | 75 | 25 | 43 | 24.6° | AL | |
| 2-3133-LM | 75 | 25 | 43 | 36.8° | AL | |
| 2-2908-LM2 | 75 | 25 | 43 | 56° | AL | |
| 3-2992-LM | 85 | 25 | 51 | 14.8° | AL | |
| 3-2993-LM | 85 | 25 | 51 | 22.4° | AL | |
| 3-2994-LM | 85 | 25 | 51 | 36.6° | AL | |
| 3-2995-LM | 92 | 25 | 49 | 14.6° | AL | |
| 3-2996-LM | 92 | 25 | 49 | 25° | AL | |
| 3-2997-LM | 92 | 25 | 49 | 37.8° | AL | |
| 3-2998-LM | 92 | 25 | 49 | 42° | AL | |
| 3-2999-LM | 92 | 25 | 49 | 56.6° | AL |
