2-2181-M

AU-G2 Series - Dark Light Reflector

LED

V13B

Diameter

75 mm

Hole/W

14.5 mm

Height

69.2 mm

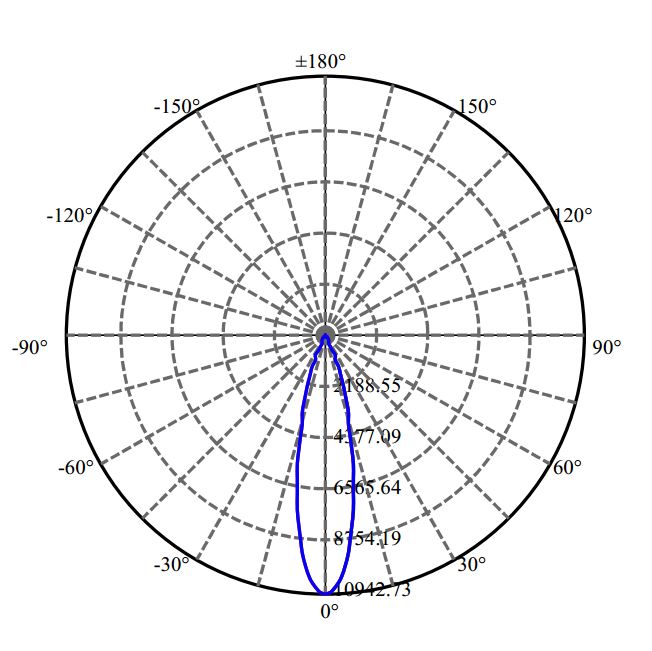

FWHM

25°

LES

14.5

Material

Fastening

Holder BJB 47.360.1010

Application

Remark

Download

If you are interested in our products, please feel free to send us an email or fill out the inquiry form here. We will respond within 12 hours!

Description

The AU Series aluminum reflectors feature a deep cone structure that enhances the light utilization of the spill light, significantly improving issues such as spill light, black circles, central bright spots, and bright rings. The optimal optical ratio of the cup opening to height is 1:1, with a glare control > 60° and a UGR<19. The central light intensity is 10%-15% higher than that of conventional reflectors, effectively increasing light utilization. The twist-lock structure is compatible with ZHAGA standard holders.
Diameters: D35, D45, D50, D70, D75.
FWHM: 18°, 24°, 34°.
Material: AL

Brand	LED	OD/L	Hole/W	H	FWHM
Luminus	CXM-14-AC40	75	14.5	69.2	25°
Tridonic	SLE G7 15MM	75	14.5	69.2	25°
OSRAM OPTO	SOLERIQ S15	75	14.5	69.2	24°
Cree	CXA1830	75	14.5	69.2	25°
Citizen	CLU038	75	14.5	69.2	24°
