1-1007-M
AU-G2 Series - Dark Light Reflector
LED
CLU028
Diameter
45 mm
Hole/W
9.8 mm
Height
45.7 mm

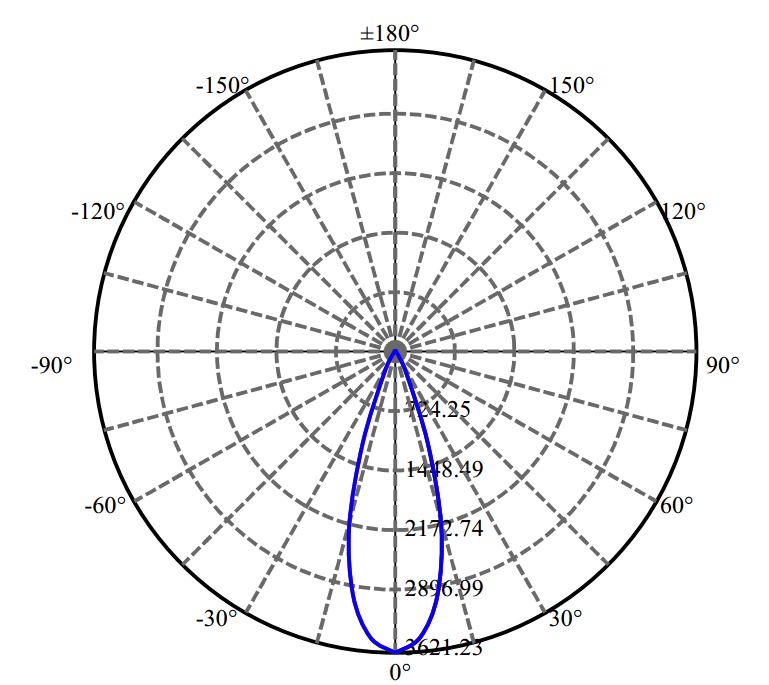

FWHM
34°
LES
9.8
Material
AL
Fastening
Holder BJB 47.360.1020
Application
Spot Light
Remark
Description
- The AU Series aluminum reflectors feature a deep cone structure that enhances the light utilization of the spill light, significantly improving issues such as spill light, black circles, central bright spots, and bright rings. The optimal optical ratio of the cup opening to height is 1:1, with a glare control > 60° and a UGR<19. The central light intensity is 10%-15% higher than that of conventional reflectors, effectively increasing light utilization. The twist-lock structure is compatible with ZHAGA standard holders.
- Diameters: D35, D45, D50, D70, D75.
- FWHM: 18°, 24°, 34°.
- Material: AL
Product Video
Compatible LED
| Brand | LED | OD/L | Hole/W | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| Tridonic | SLE G7 9MM | 45 | 9.8 | 45.7 | 33° | ||
| SAMSUNG | LC009D | 45 | 9.8 | 45.7 | 36° | ||
| Philips | SLM 1202 G7N | 45 | 9.8 | 45.7 | 34° | ||
| Philips | SLM 1203 G7N | 45 | 9.8 | 45.7 | 34° | ||
| Philips | SLM 1204 G7N | 45 | 9.8 | 45.7 | 34° | ||
| Philips | SLM 1201 G7N | 45 | 9.8 | 45.7 | 34° | ||
| Cree | CXA1512 | 45 | 9.8 | 45.7 | 34° | 92.70.277.00 | |
| Lumileds | 1203 | 45 | 9.8 | 45.7 | 33° | ||
| Bridgelux | V10B | 45 | 9.8 | 45.7 | 33° |
