Products

3-2031-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-2031-M

Diameter: 85 mm
Height: 51 mm
Add
LED Light Source Angle Accessory
Philips Certaflux SLM 1202 L09 G1 11° 92.70.127.00
SEOUL SAWx10 11° 92.70.124.00
Nichia NTCWT012B-V3 10° 92.70.125.00
Nichia NFCWL036B-V2 11° 92.70.132.00
Luminus CXM-6-AC40 11° 92.70.123.00
Luminus CXM-9-AC40 12° 92.70.124.00
Luminus CLM-9-AA40 12° 92.70.127.00
Luminus CHM-9-XD20 11° 92.70.126.00
Luminus CHM-9-AA10 10° 92.70.126.00
BMTC MA-1313 7W 11° 92.70.124.00
Cree CXA1512 11° 92.70.127.00
Citizen CLU026 11° 92.70.124.00
Bridgelux V10B 11° 92.70.124.00
Bridgelux V6-HD 10° 92.70.124.00
1-0924-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1-0924-M

Diameter: 35 mm
Height: 29.4 mm
Add
LED Light Source Angle Accessory
Lumileds LUXEON CoB 1202s 35° 92.70.125.00, 99.02.73.174
Nichia NTCWS024B-V3 35° 92.70.125.00, 99.02.73.174
Luminus CXM-6-AC40 36° 92.70.123.00
Bridgelux V6-HD 35° 92.70.123.00
1653-S,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1653-S

Diameter: 35 mm
Height: 21.5 mm
Add
LED Light Source Angle Accessory
Xicato XOB LES 6MM 15° 92.70.043.00
SEOUL SAWx10 24° 92.70.064.00
Nichia NVNWS007Z-V1 15° 92.70.125.00
Nichia NTCWT012B-V3 16° 92.70.044.00
Luminus CXM-9-AC40 26° 92.70.064.00
Nichia NTCWS024B-V3 18° 92.70.044.00
Luminus CLM-9-AA40 27° 92.70.046.00
Luminus CXM-6-AC40 17° 92.70.043.00
Cree CXA1310 16° 92.70.043.00
Cree CXA1512 23° 92.70.046.00
Lumileds LUXEON CoB 1202s 17° 92.70.044.00
Citizen CLU7A2-1201C9 12° 92.70.043.00
Tridonic SLE G7 9MM 23° 92.70.064.00
Luminus CXM-4-AC40 13° 92.70.043.00
Citizen CLU700 15° 92.70.043.00
Citizen CLU028 25° 92.70.064.00
Bridgelux V4-HD 12° 92.70.051.00
Bridgelux V6-HD 17° 92.70.064.00

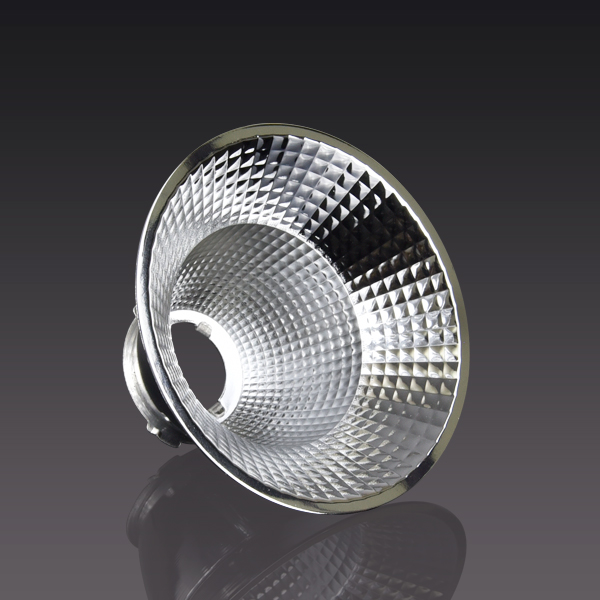

2-1682-M3,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1682-M3

Diameter: 75 mm
Height: 42.4 mm
Add
LED Light Source Angle Accessory
Bridgelux Vesta DW LES9 45° 92.70.125.00
Bridgelux Vesta DW LES6 40° 92.70.125.00
1656-S,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1656-S

Diameter: 50 mm
Height: 30 mm
Add
LED Light Source Angle Accessory
SEOUL SAWx10 17° 92.70.124.00
Xicato XOB LES 9.8MM 15° 92.70.124.00
Bridgelux V10 15° 92.70.124.00
Citizen CLU028 16° 92.70.124.00
Nichia NTCWT012B-V3 11° 92.70.125.00
Nichia NTCWS024B-V3 12° 92.70.125.00
Luminus CXM-9-AC40 17° 92.70.124.00
Luminus CXM-6-AC40 12° 92.70.123.00
Luminus CLM-9-AA40 19° 92.70.127.00
Cree CMT1420 16° 92.70.124.00
Luminus CHM-9-AA10 15° 92.70.126.00
Luminus CHM-9-XD20 16° 92.70.126.00
Luminus CXM-4-AC40 10° 92.70.123.00
Citizen CLU7A2-1201C9 10° 92.70.123.00
Bridgelux V4-HD 10° 92.70.122.00
Bridgelux V6-HD 12° 92.70.124.00
Cree CXA1310 11° 92.70.123.00
Tridonic SLE G7 9MM 15° 92.70.124.00
Cree CXA1512 15° 92.70.127.00

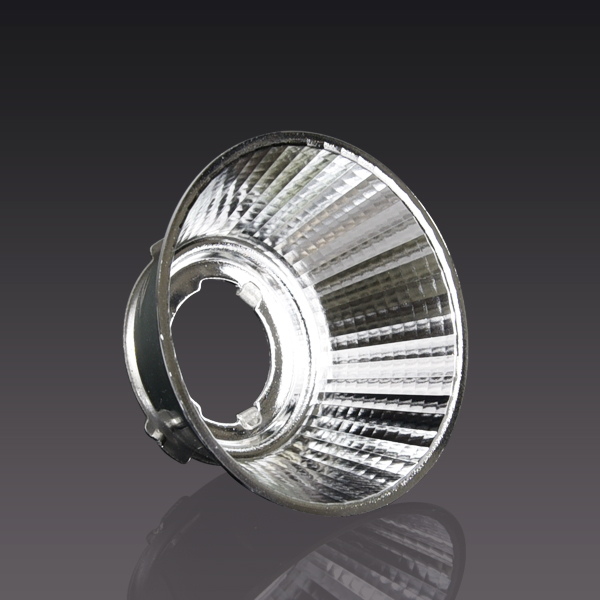

1709-M2,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1709-M2

Diameter: 49.6 mm
Height: 21.7 mm
Add
LED Light Source Angle Accessory
Bridgelux Vesta DW LES9 23° 92.70.125.00
Bridgelux Vesta DW LES6 20° 92.70.125.00
1658-S,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1658-S

Diameter: 50 mm
Height: 30 mm
Add
LED Light Source Angle Accessory
Xicato XOB LES 9.8MM 36° 92.70.124.00
SEOUL SAWx10 34° 92.70.124.00
Tridonic SLE G7 9MM 33° 92.70.124.00
Nichia NTCWS024B-V3 31° 92.70.125.00
Nichia NTCWT012B-V3 30° 92.70.125.00
Luminus CLM-9-AA40 39° 92.70.127.00
Luminus CXM-6-AC40 31° 92.70.123.00
Luminus CXM-9-AC40 36° 92.70.124.00
Luminus CXM-4-AC40 28° 92.70.123.00
Luminus CHM-9-XD20 35° 92.70.126.00
Luminus CHM-9-AA10 34° 92.70.126.00
Citizen CLU7A2-1201C9 29° 92.70.123.00
Cree CMT1420 35° 92.70.124.00
Cree CXA1512 33° 92.70.127.00
Cree CXA1310 30° 92.70.123.00
Bridgelux V6-HD 30° 92.70.124.00
Citizen CLU028 35° 92.70.124.00
Bridgelux V4-HD 28° 92.70.122.00
Bridgelux V10 36° 92.70.124.00
Lumileds LUXEON CoB 1203 33° 92.70.132.00
1-0788-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1-0788-M

Diameter: 49.6 mm
Height: 21.7 mm
Add
LED Light Source Angle Accessory
Xicato XOB LES 9.8MM 38° 92.70.124.00
Tridonic SLE G7 9MM 36° 92.70.124.00
Cree CXA1512 36° 92.70.127.00
Cree CMT1420 36° 92.70.124.00
Luminus CLM-9-AA40 38° 92.70.127.00
Luminus CXM-9-AC40 38° 92.70.124.00
Luminus CXM-6-AC40 35° 92.70.123.00
Nichia NTCWT012B-V3 34° 92.70.125.00
Luminus CHM-9-XD20 36° 92.70.126.00
Luminus CHM-9-AA10 36° 92.70.126.00
Citizen CLU026 34° 92.70.124.00
Bridgelux V10B 36° 92.70.124.00
Bridgelux V4-HD 33° 92.70.122.00
Bridgelux V6-HD 34° 92.70.124.00

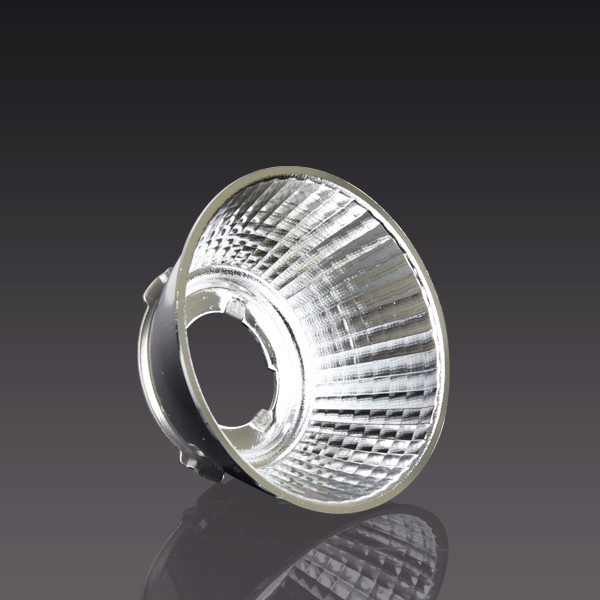

1687-M2,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1687-M2

Diameter: 49.6 mm
Height: 21.7 mm
Add
LED Light Source Angle Accessory
Bridgelux Vesta DW LES9 35° 92.70.125.00
Bridgelux Vesta DW LES6 31° 92.70.125.00
1657-S,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1657-S

Diameter: 50 mm
Height: 30 mm
Add
LED Light Source Angle Accessory
SEOUL SAWx10 23° 92.70.124.00
Nichia NTCWT012B-V3 20° 92.70.125.00
Xicato XOB LES 9.8MM 24° 92.70.124.00
Tridonic SLE G7 9MM 23° 92.70.124.00
Nichia NTCWS024B-V3 20° 92.70.125.00
Luminus CXM-4-AC40 17° 92.70.123.00
Luminus CXM-9-AC40 25° 92.70.124.00
Luminus CXM-6-AC40 20° 92.70.123.00
Luminus CHM-9-XD20 24° 92.70.126.00
Luminus CLM-9-AA40 26° 92.70.127.00
Lumileds LUXEON CoB 1203 22° 92.70.132.00
Luminus CHM-9-AA10 23° 92.70.126.00
Cree CMT1420 24° 92.70.124.00
Cree CXA1512 22° 92.70.127.00
Cree CXA1310 19° 92.70.123.00
Bridgelux V4-HD 17° 92.70.122.00
Citizen CLU7A2-1201C9 17° 92.70.123.00
Citizen CLU028 23° 92.70.124.00
Bridgelux V10 23° 92.70.124.00
Bridgelux V6-HD 20° 92.70.124.00
1681-S,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1681-S

Diameter: 50 mm
Height: 30 mm
Add
LED Light Source Angle Accessory
Xicato XOB LES 9.8MM 60° 92.70.124.00
SEOUL SAWx10 58° 92.70.124.00
Tridonic SLE G7 9MM 60° 92.70.124.00
Nichia NTCWT012B-V3 53° 92.70.125.00
Nichia NTCWS024B-V3 54° 92.70.125.00
Cree CMT1420 58° 92.70.124.00
Lumileds LUXEON CoB 1203 58° 92.70.132.00
Luminus CHM-9-AA10 55° 92.70.126.00
Luminus CHM-9-XD20 57° 92.70.126.00
Luminus CLM-9-AA40 59° 92.70.127.00
Luminus CXM-6-AC40 55° 92.70.123.00
Cree CXA1310 53° 92.70.123.00
Luminus CXM-9-AC40 59° 92.70.124.00
Cree CXA1512 60° 92.70.127.00
Citizen CLU028 58° 92.70.124.00
Bridgelux V10 60° 92.70.124.00
Bridgelux V6-HD 51° 92.70.124.00
1-0922-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1-0922-M

Diameter: 35 mm
Height: 29.4 mm
Add
LED Light Source Angle Accessory
Nichia NTCWS024B-V3 18° 92.70.125.00, 99.02.73.174
Bridgelux V6-HD 17° 92.70.123.00
Lumileds LUXEON CoB 1202s 18° 92.70.125.00, 99.02.73.174
Luminus CXM-6-AC40 18° 92.70.123.00

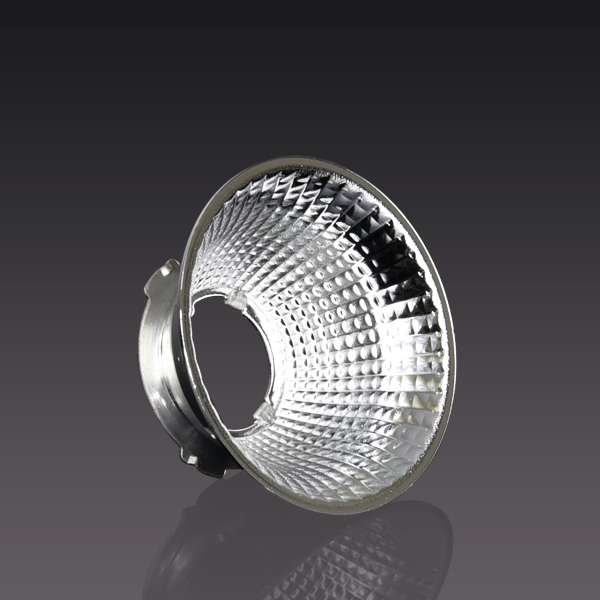

1-0788-M2,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1-0788-M2

Diameter: 49.6 mm
Height: 21.7 mm
Add
LED Light Source Angle Accessory
Bridgelux Vesta DW LES9 45° 92.70.125.00
Bridgelux Vesta DW LES6 43° 92.70.125.00

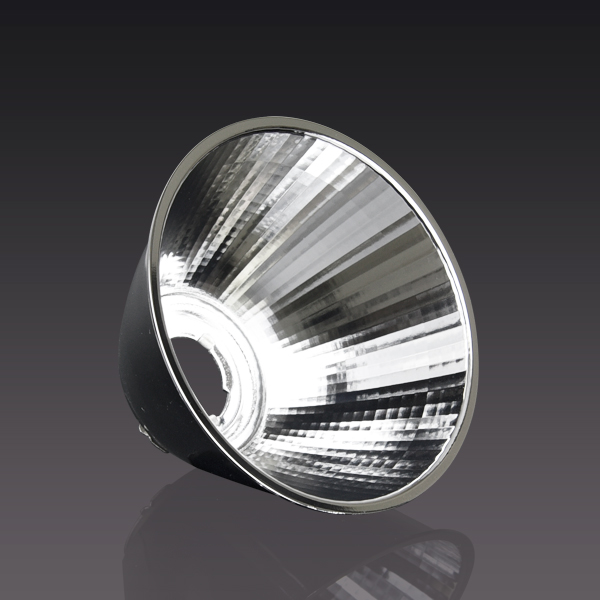

2-1678-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1678-M

Diameter: 75 mm
Height: 42.4 mm
Add
LED Light Source Angle Accessory
Philips Certaflux SLM 1202 L09 G1 10° 92.70.127.00
Nichia NVNWS007Z-V1 92.70.125.00
Tridonic SLE G7 9MM 10° 92.70.124.00
Xicato XOB LES 9.8MM 11° 92.70.124.00
SEOUL SAWx10 11° 92.70.124.00
Luminus CXM-6-AC40 92.70.123.00
Nichia NFCWL036B-V2 10° 92.70.132.00
Citizen CLU028 11° 92.70.124.00
Cree CXA1512 11° 92.70.127.00
Cree CMT1420 11° 92.70.124.00
Luminus CHM-9-AA10 9.7° 92.70.126.00
Nichia NTCWT012B-V3 92.70.125.00
Luminus CXM-9-AC40 11° 92.70.124.00
Luminus CLM-9-AA40 12° 92.70.127.00
Luminus CHM-9-XD20 11° 92.70.126.00
Citizen CLU026 11° 92.70.124.00
BMTC MA-1313 7W 10° 92.70.124.00
Bridgelux V10B 10° 92.70.124.00
Bridgelux V4-HD 92.70.122.00
Bridgelux V6-HD 92.70.124.00
2-1283-N,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1283-N

Diameter: 62 mm
Height: 42 mm
Add
LED Light Source Angle Accessory
Nichia NTCWS024B-V3 12° 92.70.125.00, 97.70.054.00
Luminus CLM-9-AA40 16° 92.70.046.00, 97.70.054.00
Luminus CXM-9-AC40 15° 92.70.064.00, 97.70.054.00
Cree CMT1420 15° 92.70.064.00, 97.70.054.00
Bridgelux V10 15° 92.70.064.00, 97.70.054.00
Citizen CLU028 15° 92.70.064.00, 97.70.054.00
Cree CXA1520 15° 92.70.046.00, 97.70.054.00
Bridgelux V6-HD 11° 92.70.064.00, 97.70.054.00
Bridgelux V4-HD 11° 92.70.051.00, 97.70.054.00
1687-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1687-M

Diameter: 49.6 mm
Height: 21.7 mm
Add
LED Light Source Angle Accessory
Xicato XOB LES 9.8MM 24° 92.70.124.00
Tridonic SLE G7 9MM 24° 92.70.124.00
Xicato XOB LES 6MM 20° 92.70.123.00
Philips Certaflux SLM 1202 L09 G1 23° 92.70.127.00
SEOUL SAWx10 25° 92.70.124.00
Nichia NTCWT012B-V3 22° 92.70.125.00
Nichia NVNWS007Z-V1 20° 92.70.125.00
Luminus CHM-9-AA10 25° 92.70.126.00
Luminus CHM-9-XD20 26° 92.70.126.00
Cree CMT1420 25° 92.70.124.00
Luminus CXM-9-AC40 27° 92.70.124.00
Nichia NFCWL036B-V2 23° 92.70.132.00
Luminus CXM-6-AC40 23° 92.70.123.00
Luminus CLM-9-AA40 27° 92.70.127.00
Citizen CLU026 25° 92.70.124.00
Bridgelux BXRV-DR-1830-H-1000-A-13 24° 92.70.125.00
BMTC MA-1313 7W 16° 92.70.124.00
Cree CXA1512 24° 92.70.127.00
Bridgelux V4-HD 21° 92.70.122.00
Bridgelux BXRV-DR-1830-H-1000-B-13 24° 92.70.125.00
Bridgelux V10B 25° 92.70.124.00
Bridgelux V6-HD 21° 92.70.124.00
1689-M2,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1689-M2

Diameter: 49.6 mm
Height: 21.7 mm
Add
LED Light Source Angle Accessory
Bridgelux Vesta DW LES9 75° 92.70.125.00
Bridgelux Vesta DW LES6 75° 92.70.125.00
2-1284-N,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1284-N

Diameter: 62 mm
Height: 42 mm
Add
LED Light Source Angle Accessory
Nichia NTCWT012B-V3 20° 92.70.044.00, 97.70.054.00
Luminus CXM-9-AC40 25° 92.70.064.00, 97.70.054.00
Nichia NTCWS024B-V3 20° 92.70.125.00, 97.70.054.00
Luminus CLM-9-AA40 25° 92.70.046.00, 97.70.054.00
Cree CMT1420 24° 92.70.064.00, 97.70.054.00
Cree CXA1520 24° 92.70.046.00, 97.70.054.00
Bridgelux V10 23° 92.70.064.00, 97.70.054.00
Citizen CLU028 24° 92.70.064.00, 97.70.054.00
Bridgelux V6-HD 20° 92.70.064.00, 97.70.054.00
Bridgelux V4-HD 20° 92.70.051.00, 97.70.054.00

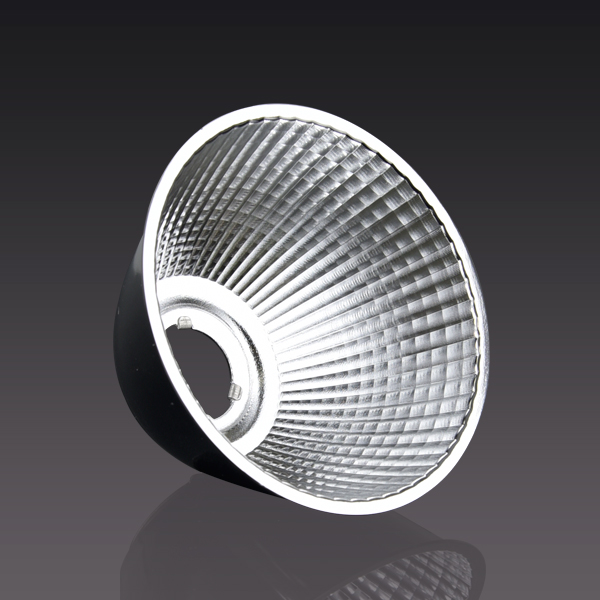

2-1680-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1680-M

Diameter: 75 mm
Height: 42.4 mm
Add
LED Light Source Angle Accessory
SEOUL SAWx10 24° 92.70.124.00
Tridonic SLE G7 9MM 25° 92.70.124.00
Xicato XOB LES 9.8MM 25° 92.70.124.00
Luminus CXM-9-AC40 25° 92.70.124.00
Luminus CXM-6-AC40 23° 92.70.123.00
Nichia NFCWL036B-V2 24° 92.70.132.00
Luminus CLM-9-AA40 25° 92.70.127.00
Philips Certaflux SLM 1202 L09 G1 24° 92.70.127.00
Nichia NVNWS007Z-V1 23° 92.70.125.00
Luminus CHM-9-AA10 24° 92.70.126.00
Luminus CHM-9-XD20 24° 92.70.126.00
Cree CXA1512 24° 92.70.127.00
Bridgelux BXRV-DR-1830-H-1000-A-13 22° 92.70.125.00
Citizen CLU028 24° 92.70.124.00
Citizen CLU026 24° 92.70.124.00
Cree CMT1420 24° 92.70.124.00
BMTC MA-1313 7W 24° 92.70.124.00
Nichia NTCWT012B-V3 25° 92.70.125.00
Bridgelux V10B 24° 92.70.124.00
Bridgelux BXRV-DR-1830-H-1000-B-13 23° 92.70.125.00
1709-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1709-M

Diameter: 49.6 mm
Height: 21.7 mm
Add
LED Light Source Angle Accessory
Xicato XOB LES 9.8MM 18° 92.70.124.00
Xicato XOB LES 6MM 15° 92.70.123.00
Luminus CXM-9-AC40 18° 92.70.124.00
Luminus CXM-6-AC40 13° 92.70.123.00
Nichia NFCWL036B-V2 16° 92.70.132.00
Nichia NTCWT012B-V3 12° 92.70.125.00
Nichia NVNWS007Z-V1 12° 92.70.125.00
SEOUL SAWx10 18° 92.70.124.00
Luminus CHM-9-AA10 16° 92.70.126.00
Tridonic SLE G7 9MM 15° 92.70.124.00
Cree CMT1420 18° 92.70.124.00
Luminus CLM-9-AA40 19° 92.70.127.00
Luminus CHM-9-XD20 18° 92.70.126.00
Bridgelux BXRV-DR-1830-H-1000-B-13 17° 92.70.125.00
Bridgelux BXRV-DR-1830-H-1000-A-13 16° 92.70.125.00
Citizen CLU026 18° 92.70.124.00
Cree CXA1512 17° 92.70.127.00
Bridgelux V10B 17° 92.70.124.00
Bridgelux V4-HD 11° 92.70.122.00
Bridgelux V6-HD 13° 92.70.124.00
2-1678-M4,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1678-M4

Diameter: 75 mm
Height: 42.4 mm
Add
LED Light Source Angle Accessory
Bridgelux Vesta DW LES9 13° 92.70.125.00
Bridgelux Vesta DW LES6 12° 92.70.125.00
2-1682-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1682-M

Diameter: 75 mm
Height: 42.4 mm
Add
LED Light Source Angle Accessory
Citizen CLU028 40° 92.70.124.00
Nichia NVNWS007Z-V1 32° 92.70.125.00
Tridonic SLE G7 9MM 36° 92.70.124.00
Xicato XOB LES 9.8MM 36° 92.70.124.00
Luminus CXM-9-AC40 38° 92.70.124.00
Luminus CXM-6-AC40 33° 92.70.123.00
Nichia NFCWL036B-V2 36° 92.70.132.00
Nichia NTCWT012B-V3 32° 92.70.125.00
Luminus CLM-9-AA40 40° 92.70.127.00
Cree CXA1512 36° 92.70.127.00
Cree CMT1420 37° 92.70.124.00
Luminus CHM-9-AA10 36° 92.70.126.00
Luminus CHM-9-XD20 37° 92.70.126.00
Citizen CLU026 36° 92.70.124.00
Bridgelux BXRV-DR-1830-H-1000-A-13 36° 92.70.125.00
BMTC MA-1313 7W 36° 92.70.124.00
Bridgelux V6-HD 31° 92.70.124.00
Bridgelux V10B 36° 92.70.124.00
Bridgelux BXRV-DR-1830-H-1000-B-13 36° 92.70.125.00
1-0923-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1-0923-M

Diameter: 35 mm
Height: 29.4 mm
Add
LED Light Source Angle Accessory
Bridgelux V6-HD 25° 92.70.123.00
Nichia NTCWS024B-V3 25° 92.70.125.00, 99.02.73.174
Luminus CXM-6-AC40 25° 92.70.123.00
Lumileds LUXEON CoB 1202s 25° 92.70.125.00, 99.02.73.174
1689-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

1689-M

Diameter: 49.6 mm
Height: 21.7 mm
Add
LED Light Source Angle Accessory
Xicato XOB LES 9.8MM 70° 92.70.124.00
Tridonic SLE G7 9MM 70° 92.70.124.00
Xicato XOB LES 6MM 65° 92.70.123.00
Luminus CLM-9-AA40 71° 92.70.127.00
Luminus CXM-9-AC40 72° 92.70.124.00
Luminus CXM-6-AC40 67° 92.70.123.00
Nichia NFCWL036B-V2 67° 92.70.132.00
Nichia NTCWT012B-V3 66° 92.70.125.00
Cree CMT1420 70° 92.70.124.00
Luminus CHM-9-AA10 70° 92.70.126.00
Nichia NVNWS007Z-V1 62° 92.70.125.00
Luminus CHM-9-XD20 70° 92.70.126.00
Cree CXA1512 67° 92.70.127.00
Citizen CLU026 68° 92.70.124.00
Bridgelux BXRV-DR-1830-H-1000-A-13 70° 92.70.125.00
Bridgelux V10B 70° 92.70.124.00
Bridgelux BXRV-DR-1830-H-1000-B-13 70° 92.70.125.00
2-1680-M2,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1680-M2

Diameter: 75 mm
Height: 42.4 mm
Add
LED Light Source Angle Accessory
Bridgelux Vesta DW LES9 28° 92.70.125.00
Bridgelux Vesta DW LES6 28° 92.70.125.00
Search Product
-

Application

Spot Light
Down Light
Linear Light
Wall Washer
Street Light
Flood Light
High Bay
Automobile Lamp
Holder
Optical Lens
Honeycomb
Anti-glare Ring
