92.70.132.00

  • Nata Lighting Company Limited - Holder 92.70.132.00

Products

Xicato XOB LES 9.8MM , SEOUL SAWx10 , Tridonic SLE G7 9MM , Nichia NTCWT012B-V3 , Nichia NTCWS024B-V3 , Cree CMT1420 , Lumileds LUXEON CoB 1203 , Luminus CHM-9-AA10 , Luminus CHM-9-XD20 , Luminus CLM-9-AA40 , Luminus CXM-6-AC40 , Cree CXA1310 , Luminus CXM-9-AC40 , Cree CXA1512 , Citizen CLU028 , Bridgelux V10 , Bridgelux V6-HD , 1681-S

1681-S

Diameter: 50 mm
Height: 30 mm
Add
LED Light Source Angle Accessory
Xicato XOB LES 9.8MM 60° 92.70.124.00
SEOUL SAWx10 58° 92.70.124.00
Tridonic SLE G7 9MM 60° 92.70.124.00
Nichia NTCWT012B-V3 53° 92.70.125.00
Nichia NTCWS024B-V3 54° 92.70.125.00
Cree CMT1420 58° 92.70.124.00
Lumileds LUXEON CoB 1203 58° 92.70.132.00
Luminus CHM-9-AA10 55° 92.70.126.00
Luminus CHM-9-XD20 57° 92.70.126.00
Luminus CLM-9-AA40 59° 92.70.127.00
Luminus CXM-6-AC40 55° 92.70.123.00
Cree CXA1310 53° 92.70.123.00
Luminus CXM-9-AC40 59° 92.70.124.00
Cree CXA1512 60° 92.70.127.00
Citizen CLU028 58° 92.70.124.00
Bridgelux V10 60° 92.70.124.00
Bridgelux V6-HD 51° 92.70.124.00
Lumileds LUXEON CoB 1205 , 2-2661-L

2-2661-L

Diameter: 63 mm
Height: 40.5 mm
Add
LED Light Source Angle Accessory
Lumileds LUXEON CoB 1205 45° 92.70.132.00, 92.70.379.00
Philips Certaflux SLM 1202 L09 G1 , SEOUL SAWx10 , Nichia NTCWT012B-V3 , Nichia NFCWL036B-V2 , Luminus CXM-6-AC40 , Luminus CXM-9-AC40 , Luminus CLM-9-AA40 , Luminus CHM-9-XD20 , Cree CXA1512 , Luminus CHM-9-AA10 , BMTC MA-1313 7W , Citizen CLU026 , Bridgelux V10B , Bridgelux V6-HD , 3-2031-M

3-2031-M

Diameter: 85 mm
Height: 51 mm
Add
LED Light Source Angle Accessory
Philips Certaflux SLM 1202 L09 G1 11° 92.70.127.00
SEOUL SAWx10 11° 92.70.124.00
Nichia NTCWT012B-V3 10° 92.70.125.00
Nichia NFCWL036B-V2 11° 92.70.132.00
Luminus CXM-6-AC40 11° 92.70.123.00
Luminus CXM-9-AC40 12° 92.70.124.00
Luminus CLM-9-AA40 12° 92.70.127.00
Luminus CHM-9-XD20 11° 92.70.126.00
Cree CXA1512 11° 92.70.127.00
Luminus CHM-9-AA10 10° 92.70.126.00
BMTC MA-1313 7W 11° 92.70.124.00
Citizen CLU026 11° 92.70.124.00
Bridgelux V10B 11° 92.70.124.00
Bridgelux V6-HD 10° 92.70.124.00
Xicato XOB LES 9.8MM , SEOUL SAWx10 , Tridonic SLE G7 9MM , Nichia NTCWS024B-V3 , Nichia NTCWT012B-V3 , Luminus CLM-9-AA40 , Luminus CXM-6-AC40 , Luminus CXM-9-AC40 , Luminus CXM-4-AC40 , Luminus CHM-9-XD20 , Luminus CHM-9-AA10 , Citizen CLU7A2-1201C9 , Cree CMT1420 , Cree CXA1512 , Cree CXA1310 , Bridgelux V6-HD , Citizen CLU028 , Bridgelux V4-HD , Bridgelux V10 , Lumileds LUXEON CoB 1203 , 1658-S

1658-S

Diameter: 50 mm
Height: 30 mm
Add
LED Light Source Angle Accessory
Xicato XOB LES 9.8MM 36° 92.70.124.00
SEOUL SAWx10 34° 92.70.124.00
Tridonic SLE G7 9MM 33° 92.70.124.00
Nichia NTCWS024B-V3 31° 92.70.125.00
Nichia NTCWT012B-V3 30° 92.70.125.00
Luminus CLM-9-AA40 39° 92.70.127.00
Luminus CXM-6-AC40 31° 92.70.123.00
Luminus CXM-9-AC40 36° 92.70.124.00
Luminus CXM-4-AC40 28° 92.70.123.00
Luminus CHM-9-XD20 35° 92.70.126.00
Luminus CHM-9-AA10 34° 92.70.126.00
Citizen CLU7A2-1201C9 29° 92.70.123.00
Cree CMT1420 35° 92.70.124.00
Cree CXA1512 33° 92.70.127.00
Cree CXA1310 30° 92.70.123.00
Bridgelux V6-HD 30° 92.70.124.00
Citizen CLU028 35° 92.70.124.00
Bridgelux V4-HD 28° 92.70.122.00
Bridgelux V10 36° 92.70.124.00
Lumileds LUXEON CoB 1203 33° 92.70.132.00
Xicato XOB LES 9.8MM , Lumileds LUXEON CoB 1203 , Philips SLM 1203 G7 L9 , Cree CXA1507 , LM01D05515BH

LM01D05515BH

Diameter: 55 mm
Height: 24 mm
Add
LED Light Source Angle Accessory
Xicato XOB LES 9.8MM 15° 92.70.124.00
Lumileds LUXEON CoB 1203 15° 92.70.132.00
Philips SLM 1203 G7 L9 15°
Cree CXA1507 15° 92.70.127.00
Lumileds LUXEON CoB 1205 , 2-2659-L

2-2659-L

Diameter: 63 mm
Height: 40.5 mm
Add
LED Light Source Angle Accessory
Lumileds LUXEON CoB 1205 24° 92.70.132.00, 92.70.379.00
Tridonic SLE G7 9MM , Xicato XOB LES 9.8MM , Nichia NTCWT012B-V3 , Nichia NVNWS007Z-V1 , Philips Certaflux SLM 1202 L09 G1 , SEOUL SAWx10 , Luminus CXM-9-AC40 , Luminus CXM-6-AC40 , Nichia NFCWL036B-V2 , BMTC MA-1313 7W , Xicato XOB LES 6MM , Luminus CLM-9-AA40 , Cree CMT1420 , Cree CXA1512 , Luminus CHM-9-AA10 , Bridgelux BXRV-DR-1830-H-1000-B-13 , Bridgelux BXRV-DR-1830-H-1000-A-13 , Luminus CHM-9-XD20 , Citizen CLU026 , Bridgelux V4-HD , Bridgelux V10B , Bridgelux V6-HD , 1687-M

1687-M

Diameter: 49.6 mm
Height: 21.7 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 9MM 24° 92.70.124.00
Xicato XOB LES 9.8MM 24° 92.70.124.00
Nichia NTCWT012B-V3 22° 92.70.125.00
Nichia NVNWS007Z-V1 20° 92.70.125.00
Philips Certaflux SLM 1202 L09 G1 23° 92.70.127.00
SEOUL SAWx10 25° 92.70.124.00
Luminus CXM-9-AC40 27° 92.70.124.00
Luminus CXM-6-AC40 23° 92.70.123.00
Nichia NFCWL036B-V2 23° 92.70.132.00
BMTC MA-1313 7W 16° 92.70.124.00
Xicato XOB LES 6MM 20° 92.70.123.00
Luminus CLM-9-AA40 27° 92.70.127.00
Cree CMT1420 25° 92.70.124.00
Cree CXA1512 24° 92.70.127.00
Luminus CHM-9-AA10 25° 92.70.126.00
Bridgelux BXRV-DR-1830-H-1000-B-13 24° 92.70.125.00
Bridgelux BXRV-DR-1830-H-1000-A-13 24° 92.70.125.00
Luminus CHM-9-XD20 26° 92.70.126.00
Citizen CLU026 25° 92.70.124.00
Bridgelux V4-HD 21° 92.70.122.00
Bridgelux V10B 25° 92.70.124.00
Bridgelux V6-HD 21° 92.70.124.00
Philips SLM 1202 G7N , Luminus CXM-9-AC40 , Nichia NTCWS024B-V3 , Nichia NFCWL036B-V2 , Philips SLM 1203 G7N , Luminus CLM-9-AA40 , Philips SLM 1201 G7N , Lumileds LUXEON CoB 1203 , Lumileds LUXEON CoB 1202s , Cree CXA1507 , Cree CXA1512 , Cree CXA1516 , Citizen CLU028 , Bridgelux V10B , Bridgelux C10 , Philips SLM 1204 G7N , SAMSUNG LC009D , Tridonic SLE G7 9MM , 1-0926-M

1-0926-M

Diameter: 50 mm
Height: 55.7 mm
Add
LED Light Source Angle Accessory
Philips SLM 1202 G7N 17° 92.70.124.00
Luminus CXM-9-AC40 20° 92.70.124.00, 99.02.73.171, 92.76.853.00
Nichia NTCWS024B-V3 14° 99.02.73.174, 92.76.853.00
Nichia NFCWL036B-V2 16° 99.02.73.175, 92.76.853.00
Philips SLM 1203 G7N 17° 92.70.124.00
Luminus CLM-9-AA40 18° 92.70.127.00
Philips SLM 1201 G7N 17° 92.70.124.00
Lumileds LUXEON CoB 1203 18° 92.70.132.00, 99.02.73.175, 92.76.853.00
Lumileds LUXEON CoB 1202s 14° 99.02.73.174, 92.76.853.00
Cree CXA1507 15° 92.70.127.00, 99.02.73.179, 92.76.853.00
Cree CXA1512 15° 99.02.73.179, 92.76.853.00
Cree CXA1516 15° 99.02.73.179, 92.76.853.00
Citizen CLU028 16° 92.70.124.00, 99.02.73.171, 92.76.853.00
Bridgelux V10B 15° 92.70.124.00, 99.02.73.171, 92.76.853.00
Bridgelux C10 15° 99.02.73.179, 92.76.853.00
Philips SLM 1204 G7N 17° 92.70.124.00
SAMSUNG LC009D 18° 99.02.73.171, 92.76.853.00
Tridonic SLE G7 9MM 15° 92.70.124.00
Lumileds LUXEON CoB 1203 , Luminus CXM-9-AC40 , Cree CXA1512 , SAMSUNG LC013D , Tridonic SLE G7 9MM , Bridgelux V10 , Citizen CLU028 , 2-1745-N

2-1745-N

Diameter: 69 mm
Height: 45.5 mm
Add
LED Light Source Angle Accessory
Lumileds LUXEON CoB 1203 13° 97.70.088.00, 92.70.132.00
Luminus CXM-9-AC40 14° 97.70.088.00, 92.70.124.00
Cree CXA1512 13° 97.70.088.00, 92.70.127.00
SAMSUNG LC013D 15° 97.70.088.00, 92.70.124.00
Tridonic SLE G7 9MM 13° 97.70.088.00, 92.70.124.00
Bridgelux V10 14° 97.70.088.00, 92.70.124.00
Citizen CLU028 15° 97.70.088.00, 92.70.124.00
Xicato XOB LES 9.8MM , Lumileds LUXEON CoB 1203 , Philips SLM 1203 G7 L9 , Cree CXA1507 , LM01D05524BH

LM01D05524BH

Diameter: 55 mm
Height: 24 mm
Add
LED Light Source Angle Accessory
Xicato XOB LES 9.8MM 28° 92.70.124.00
Lumileds LUXEON CoB 1203 24° 92.70.132.00
Philips SLM 1203 G7 L9 25°
Cree CXA1507 25° 92.70.127.00
Xicato XOB LES 9.8MM , Tridonic SLE G7 9MM , Luminus CLM-9-AA40 , Luminus CXM-9-AC40 , Luminus CXM-6-AC40 , Nichia NFCWL036B-V2 , Nichia NTCWT012B-V3 , Nichia NVNWS007Z-V1 , SEOUL SAWx10 , Xicato XOB LES 6MM , Bridgelux BXRV-DR-1830-H-1000-B-13 , Luminus CHM-9-AA10 , Luminus CHM-9-XD20 , Cree CMT1420 , Cree CXA1512 , Bridgelux BXRV-DR-1830-H-1000-A-13 , Citizen CLU026 , Bridgelux V10B , Bridgelux V6-HD , Bridgelux V4-HD , 1709-M

1709-M

Diameter: 49.6 mm
Height: 21.7 mm
Add
LED Light Source Angle Accessory
Xicato XOB LES 9.8MM 18° 92.70.124.00
Tridonic SLE G7 9MM 15° 92.70.124.00
Luminus CLM-9-AA40 19° 92.70.127.00
Luminus CXM-9-AC40 18° 92.70.124.00
Luminus CXM-6-AC40 13° 92.70.123.00
Nichia NFCWL036B-V2 16° 92.70.132.00
Nichia NTCWT012B-V3 12° 92.70.125.00
Nichia NVNWS007Z-V1 12° 92.70.125.00
SEOUL SAWx10 18° 92.70.124.00
Xicato XOB LES 6MM 15° 92.70.123.00
Bridgelux BXRV-DR-1830-H-1000-B-13 17° 92.70.125.00
Luminus CHM-9-AA10 16° 92.70.126.00
Luminus CHM-9-XD20 18° 92.70.126.00
Cree CMT1420 18° 92.70.124.00
Cree CXA1512 17° 92.70.127.00
Bridgelux BXRV-DR-1830-H-1000-A-13 16° 92.70.125.00
Citizen CLU026 18° 92.70.124.00
Bridgelux V10B 17° 92.70.124.00
Bridgelux V6-HD 13° 92.70.124.00
Bridgelux V4-HD 11° 92.70.122.00
Philips SLM 1203 G7N , Philips SLM 1204 G7N , Philips SLM 1202 G7N , Philips SLM 1201 G7N , Nichia NFCWL036B-V2 , Nichia NTCWS024B-V3 , Lumileds LUXEON CoB 1203 , Luminus CLM-9-AA40 , Luminus CXM-9-AC40 , SAMSUNG LC009D , Lumileds LUXEON CoB 1202s , Cree CXA1516 , Cree CXA1512 , Cree CXA1507 , Citizen CLU028 , Bridgelux C10 , Bridgelux V10B , Tridonic SLE G7 9MM , 1-0928-M

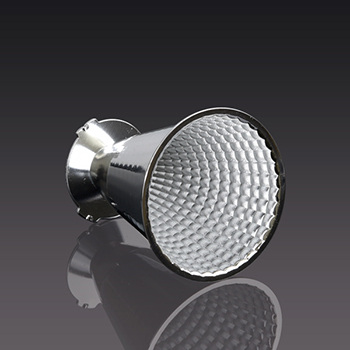

1-0928-M

Diameter: 50 mm
Height: 55.7 mm
Add
LED Light Source Angle Accessory
Philips SLM 1203 G7N 36° 92.70.124.00
Philips SLM 1204 G7N 36° 92.70.124.00
Philips SLM 1202 G7N 36° 92.70.124.00
Philips SLM 1201 G7N 36° 92.70.124.00
Nichia NFCWL036B-V2 31° 99.02.73.175, 92.76.853.00
Nichia NTCWS024B-V3 30° 99.02.73.174, 92.76.853.00
Lumileds LUXEON CoB 1203 33° 92.70.132.00, 99.02.73.175, 92.76.853.00
Luminus CLM-9-AA40 36° 92.70.127.00
Luminus CXM-9-AC40 35° 92.70.124.00, 99.02.73.171, 92.76.853.00
SAMSUNG LC009D 34° 99.02.73.171, 92.76.853.00
Lumileds LUXEON CoB 1202s 28° 99.02.73.174, 92.76.853.00
Cree CXA1516 33° 99.02.73.179, 92.76.853.00
Cree CXA1512 33° 99.02.73.179, 92.76.853.00
Cree CXA1507 33° 92.70.127.00, 99.02.73.179, 92.76.853.00
Citizen CLU028 34° 92.70.124.00, 99.02.73.171, 92.76.853.00
Bridgelux C10 33° 99.02.73.179, 92.76.853.00
Bridgelux V10B 33° 92.70.124.00, 99.02.73.171, 92.76.853.00
Tridonic SLE G7 9MM 33° 92.70.124.00
Nichia NFCWL036B-V2 , Xicato XOB LES 9.8MM , Tridonic SLE G7 9MM , SEOUL SAWx10 , Philips Certaflux SLM 1202 L09 G1 , Nichia NTCWT012B-V3 , Luminus CXM-6-AC40 , Bridgelux BXRV-DR-1830-H-1000-A-13 , Nichia NVNWS007Z-V1 , Citizen CLU028 , Cree CXA1512 , Cree CMT1420 , Luminus CXM-9-AC40 , Luminus CHM-9-AA10 , Luminus CHM-9-XD20 , Luminus CLM-9-AA40 , Citizen CLU026 , BMTC MA-1313 7W , Bridgelux V10B , Bridgelux BXRV-DR-1830-H-1000-B-13 , 2-1680-M

2-1680-M

Diameter: 75 mm
Height: 42.4 mm
Add
LED Light Source Angle Accessory
Nichia NFCWL036B-V2 24° 92.70.132.00
Xicato XOB LES 9.8MM 25° 92.70.124.00
Tridonic SLE G7 9MM 25° 92.70.124.00
SEOUL SAWx10 24° 92.70.124.00
Philips Certaflux SLM 1202 L09 G1 24° 92.70.127.00
Nichia NTCWT012B-V3 25° 92.70.125.00
Luminus CXM-6-AC40 23° 92.70.123.00
Bridgelux BXRV-DR-1830-H-1000-A-13 22° 92.70.125.00
Nichia NVNWS007Z-V1 23° 92.70.125.00
Citizen CLU028 24° 92.70.124.00
Cree CXA1512 24° 92.70.127.00
Cree CMT1420 24° 92.70.124.00
Luminus CXM-9-AC40 25° 92.70.124.00
Luminus CHM-9-AA10 24° 92.70.126.00
Luminus CHM-9-XD20 24° 92.70.126.00
Luminus CLM-9-AA40 25° 92.70.127.00
Citizen CLU026 24° 92.70.124.00
BMTC MA-1313 7W 24° 92.70.124.00
Bridgelux V10B 24° 92.70.124.00
Bridgelux BXRV-DR-1830-H-1000-B-13 23° 92.70.125.00
Tridonic SLE G7 9MM , SAMSUNG LC013D , Bridgelux V10 , Citizen CLU028 , Cree CXA1512 , Luminus CXM-9-AC40 , Lumileds LUXEON CoB 1203 , 2-1746-N

2-1746-N

Diameter: 69 mm
Height: 45.5 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 9MM 23° 97.70.088.00, 92.70.124.00
SAMSUNG LC013D 25° 97.70.088.00, 92.70.124.00
Bridgelux V10 24° 97.70.088.00, 92.70.124.00
Citizen CLU028 24° 97.70.088.00, 92.70.124.00
Cree CXA1512 24° 97.70.088.00, 92.70.127.00
Luminus CXM-9-AC40 24° 97.70.088.00, 92.70.124.00
Lumileds LUXEON CoB 1203 23° 97.70.088.00, 92.70.132.00
Xicato XOB LES 9.8MM , Nichia NFCWL036B-V2 , Nichia NTCWT012B-V3 , Luminus CHM-9-AA10 , Luminus CHM-9-XD20 , Luminus CLM-9-AA40 , Luminus CXM-9-AC40 , Luminus CXM-6-AC40 , Cree CMT1420 , Nichia NVNWS007Z-V1 , Xicato XOB LES 6MM , Tridonic SLE G7 9MM , Cree CXA1512 , Bridgelux BXRV-DR-1830-H-1000-A-13 , Citizen CLU026 , Bridgelux V10B , Bridgelux BXRV-DR-1830-H-1000-B-13 , 1689-M

1689-M

Diameter: 49.6 mm
Height: 21.7 mm
Add
LED Light Source Angle Accessory
Xicato XOB LES 9.8MM 70° 92.70.124.00
Nichia NFCWL036B-V2 67° 92.70.132.00
Nichia NTCWT012B-V3 66° 92.70.125.00
Luminus CHM-9-AA10 70° 92.70.126.00
Luminus CHM-9-XD20 70° 92.70.126.00
Luminus CLM-9-AA40 71° 92.70.127.00
Luminus CXM-9-AC40 72° 92.70.124.00
Luminus CXM-6-AC40 67° 92.70.123.00
Cree CMT1420 70° 92.70.124.00
Nichia NVNWS007Z-V1 62° 92.70.125.00
Xicato XOB LES 6MM 65° 92.70.123.00
Tridonic SLE G7 9MM 70° 92.70.124.00
Cree CXA1512 67° 92.70.127.00
Bridgelux BXRV-DR-1830-H-1000-A-13 70° 92.70.125.00
Citizen CLU026 68° 92.70.124.00
Bridgelux V10B 70° 92.70.124.00
Bridgelux BXRV-DR-1830-H-1000-B-13 70° 92.70.125.00
Philips SLM 1201 G7N , Philips SLM 1202 G7N , Luminus CLM-9-AA40 , Luminus CXM-9-AC40 , Philips SLM 1203 G7N , SAMSUNG LC009D , Philips SLM 1204 G7N , Nichia NTCWS024B-V3 , Nichia NFCWL036B-V2 , Cree CXA1507 , Cree CXA1512 , Lumileds LUXEON CoB 1203 , Cree CXA1516 , Lumileds LUXEON CoB 1202s , Bridgelux V10B , Citizen CLU028 , Bridgelux C10 , Tridonic SLE G7 9MM , 1-0919-M

1-0919-M

Diameter: 45 mm
Height: 45.7 mm
Add
LED Light Source Angle Accessory
Philips SLM 1201 G7N 24° 92.70.124.00
Philips SLM 1202 G7N 24° 92.70.124.00
Luminus CLM-9-AA40 25° 92.70.127.00
Luminus CXM-9-AC40 25° 92.70.124.00, 99.02.73.171, 92.76.853.00
Philips SLM 1203 G7N 24° 92.70.124.00
SAMSUNG LC009D 25° 99.02.73.171, 92.76.853.00
Philips SLM 1204 G7N 24° 92.70.124.00
Nichia NTCWS024B-V3 18° 99.02.73.174, 92.76.853.00
Nichia NFCWL036B-V2 21° 99.02.73.175, 92.76.853.00
Cree CXA1507 23° 92.70.127.00, 99.02.73.179, 92.76.853.00
Cree CXA1512 22° 99.02.73.179, 92.76.853.00
Lumileds LUXEON CoB 1203 24° 92.70.132.00, 99.02.73.175, 92.76.853.00
Cree CXA1516 22° 99.02.73.179, 92.76.853.00
Lumileds LUXEON CoB 1202s 17° 99.02.73.174, 92.76.853.00
Bridgelux V10B 25° 92.70.124.00, 99.02.73.171, 92.76.853.00
Citizen CLU028 24° 92.70.124.00, 99.02.73.171, 92.76.853.00
Bridgelux C10 22° 99.02.73.179, 92.76.853.00
Tridonic SLE G7 9MM 23° 92.70.124.00
Cree CXA1512 , Bridgelux V10 , Citizen CLU028 , Luminus CXM-9-AC40 , SAMSUNG LC013D , Lumileds LUXEON CoB 1203 , Tridonic SLE G7 9MM , 2-1747-N

2-1747-N

Diameter: 69 mm
Height: 45.5 mm
Add
LED Light Source Angle Accessory
Cree CXA1512 38° 97.70.088.00, 92.70.127.00
Bridgelux V10 40° 97.70.088.00, 92.70.124.00
Citizen CLU028 40° 97.70.088.00, 92.70.124.00
Luminus CXM-9-AC40 40° 97.70.088.00, 92.70.124.00
SAMSUNG LC013D 40° 97.70.088.00, 92.70.124.00
Lumileds LUXEON CoB 1203 38° 97.70.088.00, 92.70.132.00
Tridonic SLE G7 9MM 38° 97.70.088.00, 92.70.124.00
Lumileds LUXEON CoB 1202s , Lumileds LUXEON CoB 1203 , Luminus CLM-9-AA40 , Luminus CXM-9-AC40 , Nichia NTCWS024B-V3 , Tridonic SLE G7 9MM , SAMSUNG LC009D , Philips SLM 1203 G7N , Philips SLM 1204 G7N , Philips SLM 1202 G7N , Philips SLM 1201 G7N , Cree CXA1507 , Cree CXA1512 , Cree CXA1516 , Nichia NFCWL036B-V2 , Citizen CLU028 , Bridgelux C10 , Bridgelux V10B , 1-0920-M

1-0920-M

Diameter: 45 mm
Height: 45.7 mm
Add
LED Light Source Angle Accessory
Lumileds LUXEON CoB 1202s 27° 99.02.73.174, 92.76.853.00
Lumileds LUXEON CoB 1203 33° 92.70.132.00, 99.02.73.175, 92.76.853.00
Luminus CLM-9-AA40 35° 92.70.127.00
Luminus CXM-9-AC40 34° 92.70.124.00, 99.02.73.171, 92.76.853.00
Nichia NTCWS024B-V3 28° 99.02.73.174, 92.76.853.00
Tridonic SLE G7 9MM 33° 92.70.124.00
SAMSUNG LC009D 34° 99.02.73.171, 92.76.853.00
Philips SLM 1203 G7N 36° 92.70.124.00
Philips SLM 1204 G7N 36° 92.70.124.00
Philips SLM 1202 G7N 36° 92.70.124.00
Philips SLM 1201 G7N 36° 92.70.124.00
Cree CXA1507 33° 92.70.127.00, 99.02.73.179, 92.76.853.00
Cree CXA1512 33° 99.02.73.179, 92.76.853.00
Cree CXA1516 33° 99.02.73.179, 92.76.853.00
Nichia NFCWL036B-V2 31° 99.02.73.175, 92.76.853.00
Citizen CLU028 34° 92.70.124.00, 99.02.73.171, 92.76.853.00
Bridgelux C10 33° 99.02.73.179, 92.76.853.00
Bridgelux V10B 33° 92.70.124.00, 99.02.73.171, 92.76.853.00
Edison 2PHM10WW38P55020 LES 3MM , Xicato XOB LES 9.8MM , Bridgelux V4-HD , Nichia NTCWT012B-V3 , Nichia NVNWS007Z-V1 , SAMSUNG LC008 , SEOUL SAWx10 , Tridonic SLE G7 9MM , Xicato XOB LES 6MM , Lumileds LUXEON CoB 1202s , Lumileds LUXEON CoB 1203 , Luminus CLM-9-AA40 , Luminus CXM-6-AC40 , Luminus CXM-9-AC40 , Luminus CXM-3-AC40 , Luminus CXM-4-AC40 , Cree CXA1512 , Nichia NTCWS024B-V3 , Cree CMT1420 , Citizen CLU7A2-1201C9 , Citizen CLU700 , Citizen CLU028 , Bridgelux V10 , Bridgelux V8 , Bridgelux V6 , Bridgelux V6-HD , 1408-N

1408-N

Diameter: 44 mm
Height: 20 mm
Add
LED Light Source Angle Accessory
Edison 2PHM10WW38P55020 LES 3MM 60° 92.70.043.00, 97.70.047.00
Xicato XOB LES 9.8MM 55° 92.70.043.00, 97.70.047.00
Bridgelux V4-HD 58° 92.70.051.00, 97.70.047.00
Nichia NTCWT012B-V3 58° 92.70.044.00, 97.70.047.00
Nichia NVNWS007Z-V1 55° 92.70.044.00, 97.70.047.00
SAMSUNG LC008 57° 92.70.064.00, 97.70.047.00
SEOUL SAWx10 57° 92.70.064.00, 97.70.047.00
Tridonic SLE G7 9MM 60° 92.70.064.00, 97.70.047.00
Xicato XOB LES 6MM 60° 92.70.043.00, 97.70.047.00
Lumileds LUXEON CoB 1202s 55° 92.70.044.00, 97.70.047.00
Lumileds LUXEON CoB 1203 60° 92.70.132.00, 97.70.047.00
Luminus CLM-9-AA40 60° 92.70.046.00, 97.70.047.00
Luminus CXM-6-AC40 58° 92.70.043.00, 97.70.047.00
Luminus CXM-9-AC40 58° 92.70.064.00, 97.70.047.00
Luminus CXM-3-AC40 58° 92.70.043.00, 97.70.047.00
Luminus CXM-4-AC40 58° 92.70.043.00, 97.70.047.00
Cree CXA1512 57° 92.70.046.00, 97.70.047.00
Nichia NTCWS024B-V3 55° 92.70.044.00, 97.70.047.00
Cree CMT1420 57° 92.70.064.00, 97.70.047.00
Citizen CLU7A2-1201C9 59° 92.70.043.00, 97.70.047.00
Citizen CLU700 55° 92.70.064.00, 97.70.047.00
Citizen CLU028 58° 92.70.064.00, 97.70.047.00
Bridgelux V10 57° 92.70.046.00, 97.70.047.00
Bridgelux V8 61° 92.70.051.00, 97.70.047.00
Bridgelux V6 58° 92.70.051.00, 97.70.047.00
Bridgelux V6-HD 58° 92.70.064.00, 97.70.047.00
Philips SLM 1201 G7N , Philips SLM 1202 G7N , Philips SLM 1203 G7N , Philips SLM 1204 G7N , Tridonic SLE G7 9MM , SAMSUNG LC009D , Cree CXA1507 , Cree CXA1512 , Cree CXA1516 , Lumileds LUXEON CoB 1202s , Luminus CLM-9-AA40 , Luminus CXM-9-AC40 , Bridgelux V10B , Bridgelux C10 , Nichia NTCWS024B-V3 , Nichia NFCWL036B-V2 , Lumileds LUXEON CoB 1203 , Citizen CLU028 , 1-0918-M

1-0918-M

Diameter: 45 mm
Height: 45.7 mm
Add
LED Light Source Angle Accessory
Philips SLM 1201 G7N 20° 92.70.124.00
Philips SLM 1202 G7N 20° 92.70.124.00
Philips SLM 1203 G7N 20° 92.70.124.00
Philips SLM 1204 G7N 20° 92.70.124.00
Tridonic SLE G7 9MM 18° 92.70.124.00
SAMSUNG LC009D 20° 99.02.73.171, 92.76.853.00
Cree CXA1507 18° 92.70.127.00, 99.02.73.179, 92.76.853.00
Cree CXA1512 15° 99.02.73.179, 92.76.853.00
Cree CXA1516 15° 99.02.73.179, 92.76.853.00
Lumileds LUXEON CoB 1202s 13° 99.02.73.174, 92.76.853.00
Luminus CLM-9-AA40 23° 92.70.127.00
Luminus CXM-9-AC40 20° 92.70.124.00, 99.02.73.171, 92.76.853.00
Bridgelux V10B 20° 92.70.124.00, 99.02.73.171, 92.76.853.00
Bridgelux C10 15° 99.02.73.179, 92.76.853.00
Nichia NTCWS024B-V3 12.5° 99.02.73.174, 92.76.853.00
Nichia NFCWL036B-V2 16° 99.02.73.175, 92.76.853.00
Lumileds LUXEON CoB 1203 18° 92.70.132.00, 99.02.73.175, 92.76.853.00
Citizen CLU028 18° 92.70.124.00, 99.02.73.171, 92.76.853.00
Tridonic SLE G7 9MM , Xicato XOB LES 9.8MM , Nichia NVNWS007Z-V1 , SEOUL SAWx10 , Philips Certaflux SLM 1202 L09 G1 , Luminus CHM-9-XD20 , Nichia NTCWT012B-V3 , Nichia NFCWL036B-V2 , Luminus CXM-6-AC40 , Luminus CXM-9-AC40 , Luminus CHM-9-AA10 , Luminus CLM-9-AA40 , Citizen CLU028 , Cree CXA1512 , Cree CMT1420 , Citizen CLU026 , BMTC MA-1313 7W , Bridgelux V4-HD , Bridgelux V10B , Bridgelux V6-HD , 2-1678-M

2-1678-M

Diameter: 75 mm
Height: 42.4 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 9MM 10° 92.70.124.00
Xicato XOB LES 9.8MM 11° 92.70.124.00
Nichia NVNWS007Z-V1 8° 92.70.125.00
SEOUL SAWx10 11° 92.70.124.00
Philips Certaflux SLM 1202 L09 G1 10° 92.70.127.00
Luminus CHM-9-XD20 11° 92.70.126.00
Nichia NTCWT012B-V3 7° 92.70.125.00
Nichia NFCWL036B-V2 10° 92.70.132.00
Luminus CXM-6-AC40 8° 92.70.123.00
Luminus CXM-9-AC40 11° 92.70.124.00
Luminus CHM-9-AA10 9.7° 92.70.126.00
Luminus CLM-9-AA40 12° 92.70.127.00
Citizen CLU028 11° 92.70.124.00
Cree CXA1512 11° 92.70.127.00
Cree CMT1420 11° 92.70.124.00
Citizen CLU026 11° 92.70.124.00
BMTC MA-1313 7W 10° 92.70.124.00
Bridgelux V4-HD 6° 92.70.122.00
Bridgelux V10B 10° 92.70.124.00
Bridgelux V6-HD 8° 92.70.124.00
Nichia NTCWS024B-V3 , Luminus CXM-9-AC40 , Lumileds LUXEON CoB 1202s , Lumileds LUXEON CoB 1203 , Luminus CLM-9-AA40 , Cree CXA1512 , Cree CXA1516 , Cree CXA1507 , Citizen CLU028 , Bridgelux C10 , Bridgelux V10B , Nichia NFCWL036B-V2 , Philips SLM 1201 G7N , Philips SLM 1202 G7N , Philips SLM 1203 G7N , Philips SLM 1204 G7N , SAMSUNG LC009D , Tridonic SLE G7 9MM , 1-0927-M

1-0927-M

Diameter: 50 mm
Height: 55.7 mm
Add
LED Light Source Angle Accessory
Nichia NTCWS024B-V3 21° 97.70.088.00, 99.02.73.174
Luminus CXM-9-AC40 26° 92.70.124.00, 99.02.73.171, 92.76.853.00
Lumileds LUXEON CoB 1202s 21° 99.02.73.174, 92.76.853.00
Lumileds LUXEON CoB 1203 25° 92.70.132.00, 99.02.73.175, 92.76.853.00
Luminus CLM-9-AA40 27° 92.70.127.00
Cree CXA1512 24° 99.02.73.179, 92.76.853.00
Cree CXA1516 24° 99.02.73.179, 92.76.853.00
Cree CXA1507 25° 92.70.127.00, 99.02.73.179, 92.76.853.00
Citizen CLU028 24° 92.70.124.00, 99.02.73.171, 92.76.853.00
Bridgelux C10 24° 99.02.73.179, 92.76.853.00
Bridgelux V10B 25° 92.70.124.00, 99.02.73.171, 92.76.853.00
Nichia NFCWL036B-V2 23° 99.02.73.175, 92.76.853.00
Philips SLM 1201 G7N 24° 92.70.124.00
Philips SLM 1202 G7N 26° 92.70.124.00
Philips SLM 1203 G7N 26° 92.70.124.00
Philips SLM 1204 G7N 24° 92.70.124.00
SAMSUNG LC009D 26° 99.02.73.171, 92.76.853.00
Tridonic SLE G7 9MM 25° 92.70.124.00
SEOUL SAWx10 , Nichia NTCWT012B-V3 , Xicato XOB LES 9.8MM , Tridonic SLE G7 9MM , Nichia NTCWS024B-V3 , Luminus CXM-4-AC40 , Luminus CXM-9-AC40 , Luminus CXM-6-AC40 , Luminus CHM-9-XD20 , Luminus CLM-9-AA40 , Lumileds LUXEON CoB 1203 , Luminus CHM-9-AA10 , Cree CMT1420 , Cree CXA1512 , Cree CXA1310 , Bridgelux V4-HD , Citizen CLU7A2-1201C9 , Citizen CLU028 , Bridgelux V10 , Bridgelux V6-HD , 1657-S

1657-S

Diameter: 50 mm
Height: 30 mm
Add
LED Light Source Angle Accessory
SEOUL SAWx10 23° 92.70.124.00
Nichia NTCWT012B-V3 20° 92.70.125.00
Xicato XOB LES 9.8MM 24° 92.70.124.00
Tridonic SLE G7 9MM 23° 92.70.124.00
Nichia NTCWS024B-V3 20° 92.70.125.00
Luminus CXM-4-AC40 17° 92.70.123.00
Luminus CXM-9-AC40 25° 92.70.124.00
Luminus CXM-6-AC40 20° 92.70.123.00
Luminus CHM-9-XD20 24° 92.70.126.00
Luminus CLM-9-AA40 26° 92.70.127.00
Lumileds LUXEON CoB 1203 22° 92.70.132.00
Luminus CHM-9-AA10 23° 92.70.126.00
Cree CMT1420 24° 92.70.124.00
Cree CXA1512 22° 92.70.127.00
Cree CXA1310 19° 92.70.123.00
Bridgelux V4-HD 17° 92.70.122.00
Citizen CLU7A2-1201C9 17° 92.70.123.00
Citizen CLU028 23° 92.70.124.00
Bridgelux V10 23° 92.70.124.00
Bridgelux V6-HD 20° 92.70.124.00
Lumileds LUXEON CoB 1205 , 2-2660-L

2-2660-L

Diameter: 63 mm
Height: 40.5 mm
Add
LED Light Source Angle Accessory
Lumileds LUXEON CoB 1205 36° 92.70.132.00, 92.70.379.00
Citizen CLU028 , Nichia NVNWS007Z-V1 , Tridonic SLE G7 9MM , Xicato XOB LES 9.8MM , Luminus CXM-9-AC40 , Luminus CXM-6-AC40 , Nichia NFCWL036B-V2 , Nichia NTCWT012B-V3 , Cree CXA1512 , Cree CMT1420 , Luminus CHM-9-AA10 , Luminus CHM-9-XD20 , Bridgelux BXRV-DR-1830-H-1000-A-13 , Citizen CLU026 , BMTC MA-1313 7W , Bridgelux BXRV-DR-1830-H-1000-B-13 , Luminus CLM-9-AA40 , Bridgelux V6-HD , Bridgelux V10B , 2-1682-M

2-1682-M

Diameter: 75 mm
Height: 42.4 mm
Add
LED Light Source Angle Accessory
Citizen CLU028 40° 92.70.124.00
Nichia NVNWS007Z-V1 32° 92.70.125.00
Tridonic SLE G7 9MM 36° 92.70.124.00
Xicato XOB LES 9.8MM 36° 92.70.124.00
Luminus CXM-9-AC40 38° 92.70.124.00
Luminus CXM-6-AC40 33° 92.70.123.00
Nichia NFCWL036B-V2 36° 92.70.132.00
Nichia NTCWT012B-V3 32° 92.70.125.00
Cree CXA1512 36° 92.70.127.00
Cree CMT1420 37° 92.70.124.00
Luminus CHM-9-AA10 36° 92.70.126.00
Luminus CHM-9-XD20 37° 92.70.126.00
Bridgelux BXRV-DR-1830-H-1000-A-13 36° 92.70.125.00
Citizen CLU026 36° 92.70.124.00
BMTC MA-1313 7W 36° 92.70.124.00
Bridgelux BXRV-DR-1830-H-1000-B-13 36° 92.70.125.00
Luminus CLM-9-AA40 40° 92.70.127.00
Bridgelux V6-HD 31° 92.70.124.00
Bridgelux V10B 36° 92.70.124.00
Xicato XOB LES 9.8MM , Philips SLM 1203 G7 L9 , Cree CXA1507 , Lumileds LUXEON CoB 1203 , LM01D05536BH

LM01D05536BH

Diameter: 55 mm
Height: 24 mm
Add
LED Light Source Angle Accessory
Xicato XOB LES 9.8MM 36° 92.70.124.00
Philips SLM 1203 G7 L9 33°
Cree CXA1507 35° 92.70.127.00
Lumileds LUXEON CoB 1203 36° 92.70.132.00
Search Product
-

Application

Spot Light
Down Light
Linear Light
Wall Washer
Street Light
Flood Light
High Bay
Automobile Lamp
Holder
Optical Lens
Honeycomb
Anti-glare Ring
Download Catalog

About Us

Production

Optical

Products

Application

Contact
