Products

3-2115-N,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-2115-N

Diameter: 85 mm
Height: 65 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 13MM 15° 92.70.131.00
Tridonic SLE G7 15MM 18° 92.70.131.00
Lumileds LUXEON CoB 1208 16° 92.70.135.00, 97.70.146.00
Luminus CHM-9 XH20 13° 92.70.131.00, 97.70.146.00
Luminus CXM-11-AC30 14° 92.70.131.00, 99.02.73.172, 97.70.146.00
SAMSUNG LC0026D 16° 92.70.131.00, 97.70.146.00
OSRAM OPTO SOLERIQ S15 18° 92.70.131.00, 97.70.146.00
Nichia NFCWD096B-V3 15° 92.70.135.00, 97.70.146.00
Nichia NVEWJ048Z-V1 15° 92.70.135.00, 97.70.146.00
OSRAM OPTO SOLERIQ S13 15° 92.70.131.00, 97.70.146.00
Nichia NFCWJ108B-V3 15° 92.70.135.00, 97.70.146.00
Nichia NFCWJ120B-V3 15° 92.70.135.00, 97.70.146.00
Luminus CXM-14-AC40 16° 92.70.131.00, 97.70.146.00
Nichia NFDWJ130B-V3 15° 92.70.135.00, 97.70.146.00
Lumileds LUXEON CoB 1205 15° 92.70.135.00, 97.70.146.00
Nichia NFCWD084B-V3 15° 92.70.135.00, 97.70.146.00
Citizen CLU038 15° 92.70.131.00, 99.02.73.172, 97.70.146.00
Cree CMT1922 15° 92.70.131.00, 99.02.73.172, 97.70.146.00
Cree CXA1816 13° 92.70.129.00, 97.70.146.00
Bridgelux V13B 15° 92.70.131.00, 97.70.146.00
2-1795-N,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1795-N

Diameter: 75 mm
Height: 53.5 mm
Add
LED Light Source Angle Accessory
Cree CXA1830 40° 97.70.141.00, 92.70.129.00
Cree CMT1922 40° 97.70.141.00, 92.70.131.00, 99.02.73.172
Tridonic SLE G7 15MM 40° 97.70.141.00, 92.70.131.00, 99.02.73.172
Tridonic SLE G7 13MM 38° 97.70.141.00, 92.70.131.00, 99.02.73.172
OSRAM OPTO SOLERIQ S15 39° 97.70.141.00, 92.70.131.00
OSRAM OPTO SOLERIQ S13 39° 97.70.141.00, 92.70.131.00
Nichia NVEWJ048Z-V1 39° 97.70.141.00, 92.70.135.00
Nichia NFCWD096B-V3 40° 97.70.141.00, 92.70.135.00
Nichia NFCWD084B-V3 40° 97.70.141.00, 92.70.135.00
Nichia NFCWJ108B-V3 41° 97.70.141.00, 92.70.135.00
Nichia NFDWJ130B-V3 41° 97.70.141.00, 92.70.135.00
Nichia NFCWJ120B-V3 41° 97.70.141.00, 92.70.135.00
Luminus CLM-14-AC30 38° 97.70.141.00, 92.70.131.00
Luminus CXM-11-AC30 37° 97.70.141.00, 92.70.131.00, 99.02.73.172
Luminus CXM-14-AC40 42° 97.70.141.00, 92.70.131.00
Lumileds LUXEON CoB 1205 37° 97.70.141.00, 92.70.135.00
Luminus CHM-9 XH20 32° 97.70.141.00, 92.70.131.00
Citizen CLU720 35° 97.70.141.00, 92.70.131.00, 99.02.73.172
Cree CXA1816 37° 97.70.141.00, 92.70.129.00
Bridgelux V9-HD 30° 97.70.141.00, 92.70.131.00, 99.02.73.172
Bridgelux V13B 38° 97.70.141.00, 92.70.131.00
Citizen CLU710 30° 97.70.141.00, 92.70.131.00
Citizen CLU038 40° 97.70.141.00, 99.02.73.172
2-2078-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-2078-M

Diameter: 70 mm
Height: 75.1 mm
Add
LED Light Source Angle Accessory
OSRAM OPTO SOLERIQ S15 33° 92.70.131.00
Luminus CXM-14-AC40 32° 92.70.131.00
Lumileds LUXEON CoB 1208 36° 92.70.135.00
Citizen CLU038 34° 92.70.131.00
Tridonic SLE G7 15MM 33° 92.70.131.00
Cree CXA1830 33° 92.70.129.00
Bridgelux V13B 33° 92.70.131.00
2-1672-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1672-M

Diameter: 75 mm
Height: 43 mm
Add
LED Light Source Angle Accessory
SEOUL SAWx15 25° 92.70.131.00
Cree CMT1922 27° 92.70.131.00
Nichia NFCWJ108B-V3 28° 92.70.135.00
Nichia NVEWJ048Z-V1 25° 92.70.135.00
OSRAM OPTO SOLERIQ S13 25° 92.70.131.00
OSRAM OPTO SOLERIQ S15 26° 92.70.131.00
Nichia NFCWD084B-V2 25° 92.70.135.00
Nichia NFCWJ120B-V3 27° 92.70.135.00
Luminus CXM-14-AC40 28° 92.70.131.00
Luminus CXM-11-AC30 25° 92.70.131.00
Lumileds LUXEON CoB 1208 28° 92.70.135.00
BMTC MA-1919 30W 28° 92.70.131.00
Bridgelux BXRV-DR-1830-H-3000-A-13 27° 92.70.135.00
Lumileds LUXEON CoB 1205 27° 92.70.135.00
Cree CXA1830 25° 92.70.129.00
Citizen CLU038 25° 92.70.131.00
Bridgelux V13B 25° 92.70.131.00
Nichia NFCWD096B-V3 27° 92.70.135.00
Bridgelux V9-HD 21° 92.70.131.00
3-2545-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-2545-M

Diameter: 85 mm
Height: 51 mm
Add
LED Light Source Angle Accessory
SEOUL SAWx15 15° 92.70.131.00
OSRAM OPTO SOLERIQ S15 15° 92.70.131.00
OSRAM OPTO SOLERIQ S13 15° 92.70.131.00
Nichia NFCWJ108B-V3 15° 92.70.135.00
Luminus CXM-14-AC40 15° 92.70.131.00
Lumileds LUXEON CoB 1208 15° 92.70.135.00
Lumileds LUXEON CoB 1205 15° 92.70.135.00
Cree CMT1922 15° 92.70.131.00
Cree CXA1830 15° 92.70.129.00
Citizen CLU038 15° 92.70.131.00
Bridgelux V13B 15° 92.70.131.00
Tridonic SLE G7 15MM 15° 92.70.131.00
2-2006-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-2006-M

Diameter: 75 mm
Height: 43 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 13MM 25° 92.70.131.00
Bridgelux V13B 25° 92.70.131.00
Cree CXA1830 28° 92.70.129.00
Lumileds LUXEON CoB 1205 24° 92.70.135.00
Luminus CXM-14-AC40 27° 92.70.131.00
OSRAM OPTO SOLERIQ S13 24° 92.70.131.00
2-1793-N,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1793-N

Diameter: 75 mm
Height: 53.5 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 15MM 18° 97.70.141.00, 92.70.131.00, 99.02.73.172
Tridonic SLE G7 13MM 18° 97.70.141.00, 92.70.131.00, 99.02.73.172
OSRAM OPTO SOLERIQ S15 19° 97.70.141.00, 92.70.131.00
OSRAM OPTO SOLERIQ S13 18° 97.70.141.00, 92.70.131.00
Nichia NFCWD096B-V3 18° 97.70.141.00, 92.70.135.00
Nichia NVEWJ048Z-V1 17° 97.70.141.00, 92.70.135.00
Nichia NFCWJ108B-V3 18° 97.70.141.00, 92.70.135.00
Nichia NFCWD084B-V3 17° 97.70.141.00, 92.70.135.00
Nichia NFCWJ120B-V3 18° 97.70.141.00, 92.70.135.00
Nichia NFDWJ130B-V3 19° 97.70.141.00, 92.70.135.00
Luminus CXM-14-AC40 19° 97.70.141.00, 92.70.131.00
Luminus CLM-14-AC30 20° 97.70.141.00, 92.70.131.00
Luminus CXM-11-AC30 16° 97.70.141.00, 92.70.131.00, 99.02.73.172
Cree CMT1922 17° 97.70.141.00, 92.70.131.00, 99.02.73.172
Lumileds LUXEON CoB 1205 16° 97.70.141.00, 92.70.135.00
Cree CXA1816 16° 97.70.141.00, 92.70.129.00
Cree CXA1830 17° 97.70.141.00, 92.70.129.00
Bridgelux V13B 17° 97.70.141.00, 92.70.131.00
Citizen CLU720 15° 97.70.141.00, 92.70.131.00, 99.02.73.172
Luminus CHM-9 XH20 15° 97.70.141.00, 92.70.131.00
Citizen CLU038 18° 97.70.141.00, 92.70.131.00
Citizen CLU710 15° 97.70.141.00, 92.70.131.00
Bridgelux V9-HD 14° 97.70.141.00, 92.70.131.00, 99.02.73.172
4-2204-L,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

4-2204-L

Diameter: 111 mm
Height: 69.5 mm
Add
LED Light Source Angle Accessory
Lumileds LUXEON CoB 1208 40° 92.70.135.00
Citizen CLU038 36° 92.70.131.00
Tridonic SLE G7 17MM 40°
Tridonic SLE G7 15MM 38° 92.70.131.00
Luminus CXM-14-AC40 38° 92.70.131.00
SEOUL SAWx15 38° 92.70.131.00
Tridonic SLE G7 13MM 35° 92.70.131.00
Cree CXA1820 35° 92.70.129.00
LN01D06315BF-N,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

LN01D06315BF-N

Diameter: 63 mm
Height: 32 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 15MM 20° 92.70.131.00
Cree CXA1830 20° 92.70.129.00
Luminus CXM-14-AA10 19° 92.70.130.00
Tridonic SLE G7 13MM 18° 92.70.131.00
2-1676-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1676-M

Diameter: 75 mm
Height: 43 mm
Add
LED Light Source Angle Accessory
OSRAM OPTO SOLERIQ S15 35° 92.70.131.00
SEOUL SAWx15 36° 92.70.131.00
OSRAM OPTO SOLERIQ S13 34° 92.70.131.00
Nichia NFCWD096B-V3 36° 92.70.135.00
Nichia NFCWJ108B-V3 36° 92.70.135.00
Nichia NFCWD084B-V2 36° 92.70.135.00
Nichia NFCWJ120B-V3 36° 92.70.135.00
Lumileds LUXEON CoB 1208 36° 92.70.135.00
BMTC MA-1919 30W 36° 92.70.131.00
Citizen CLU038 35° 92.70.131.00
Cree CXA1830 34° 92.70.129.00
Cree CMT1922 36° 92.70.131.00
Nichia NVEWJ048Z-V1 37° 92.70.135.00
Luminus CXM-14-AC40 35° 92.70.131.00
Luminus CXM-11-AC30 34° 92.70.131.00
Lumileds LUXEON CoB 1205 36° 92.70.135.00
Bridgelux BXRV-DR-1830-H-3000-A-13 36° 92.70.135.00
Tridonic SLE G7 15MM 36° 92.70.131.00
Bridgelux V13B 35° 92.70.131.00
2-2186-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-2186-M

Diameter: 75 mm
Height: 69.2 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 15MM 18° 92.70.131.00
Luminus CXM-14-AC40 18° 92.70.131.00
OSRAM OPTO SOLERIQ S15 17° 92.70.131.00
Cree CXA1830 18° 92.70.129.00
Citizen CLU038 17° 92.70.131.00
Bridgelux V13B 17° 92.70.131.00
3-2035-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-2035-M

Diameter: 85 mm
Height: 54.8 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 13MM 43° 92.70.131.00
OSRAM OPTO SOLERIQ S19 42° 92.70.134.00
Tridonic SLE G7 15MM 43° 92.70.131.00
SEOUL SAWx15 42° 92.70.131.00
Bridgelux V13B 42° 92.70.131.00
Bridgelux BXRV-DR-1830-H-3000-A-13 43° 92.70.135.00
OSRAM OPTO SOLERIQ S15 43° 92.70.131.00
Nichia NFCWD096B-V3 43° 92.70.135.00
OSRAM OPTO SOLERIQ S13 43° 92.70.131.00
Nichia NVEWJ048Z-V1 43° 92.70.135.00
Nichia NFCWJ108B-V3 43° 92.70.135.00
Nichia NFCWJ120B-V3 43° 92.70.135.00
Cree CMT1922 43° 92.70.131.00
Lumileds LUXEON CoB 1205 41° 92.70.135.00
Nichia NFCWD084B-V2 43° 92.70.135.00
Luminus CXM-14-AC40 42° 92.70.131.00
Luminus CXM-11-AC30 43° 92.70.131.00
Cree CXA1820 42° 92.70.129.00
Cree CXA1830 42° 92.70.129.00
Lumileds LUXEON CoB 1208 43° 92.70.135.00
BMTC MA-1919 20W 42° 92.70.131.00
Citizen CLU038 42° 92.70.131.00
Bridgelux V9-HD 42° 92.70.131.00

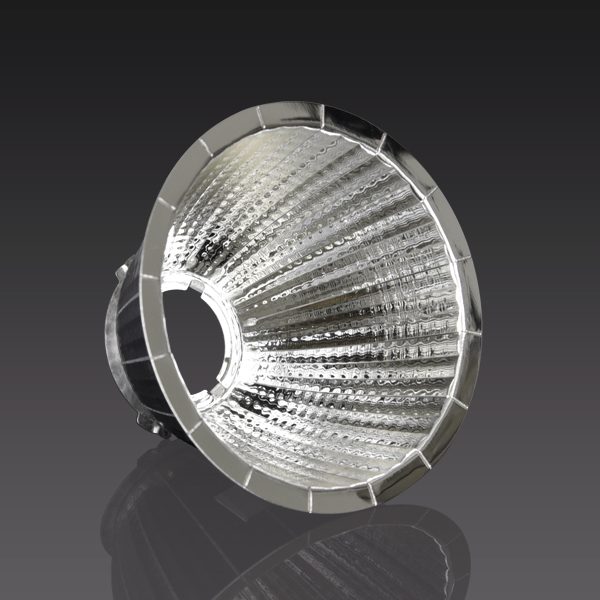

3-2546-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-2546-M

Diameter: 85 mm
Height: 51 mm
Add
LED Light Source Angle Accessory
SEOUL SAWx15 24° 92.70.131.00
OSRAM OPTO SOLERIQ S15 24° 92.70.131.00
OSRAM OPTO SOLERIQ S13 24° 92.70.131.00
Nichia NFCWJ108B-V3 24° 92.70.135.00
Luminus CXM-14-AC40 24° 92.70.131.00
Lumileds LUXEON CoB 1208 24° 92.70.135.00
Lumileds LUXEON CoB 1205 24° 92.70.135.00
Cree CMT1922 24° 92.70.131.00
Cree CXA1830 24° 92.70.129.00
Citizen CLU038 24° 92.70.131.00
Bridgelux V13B 24° 92.70.131.00
Tridonic SLE G7 15MM 24° 92.70.131.00
2-1652-A,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1652-A

Diameter: 75 mm
Height: 41 mm
Add
LED Light Source Angle Accessory
Cree CXA1816 40° 92.70.129.00, 92.70.148.00
Lumileds LUXEON CoB 1208 38° 92.70.135.00, 92.70.148.00
Citizen CLU721 40° 92.70.131.00, 92.70.148.00
Luminus CXM-14-AC30 39° 92.70.131.00, 92.70.148.00
2-2008-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-2008-M

Diameter: 75 mm
Height: 43 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 13MM 36° 92.70.131.00
Lumileds LUXEON CoB 1205 36° 92.70.135.00
Luminus CXM-14-AC40 41° 92.70.131.00
Cree CXA1830 40° 92.70.129.00
OSRAM OPTO SOLERIQ S13 36° 92.70.131.00
Bridgelux V13B 38° 92.70.131.00
4-2273-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

4-2273-M

Diameter: 111 mm
Height: 64.6 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 13MM 10° 92.70.131.00
Tridonic SLE G7 15MM 11° 92.70.131.00
SEOUL SAWx15 11° 92.70.131.00
OSRAM OPTO SOLERIQ S19 12° 92.70.134.00
OSRAM OPTO SOLERIQ S15 11° 92.70.131.00
OSRAM OPTO SOLERIQ S13 92.70.131.00
Nichia NFCWJ120B-V3 11° 92.70.135.00
Nichia NVEWJ048Z-V1 11° 92.70.135.00
Nichia NFCWJ108B-V3 11° 92.70.135.00
Nichia NFCWD096B-V3 10° 92.70.135.00
Cree CMT1922 11° 92.70.131.00
Lumileds LUXEON CoB 1208 11° 92.70.135.00
Luminus CXM-11-AC30 92.70.131.00
Nichia NFCWD084B-V2 11° 92.70.135.00
Luminus CXM-14-AC40 12° 92.70.131.00
Cree CXA1830 11° 92.70.129.00
Cree CXA2520 13° 92.70.134.00
Cree CXA1820 92.70.129.00
Citizen CLU038 11° 92.70.131.00
BMTC MA-1919 20W 12° 92.70.131.00
Bridgelux V13B 11° 92.70.131.00
Bridgelux BXRV-DR-1830-H-3000-A-13 11° 92.70.135.00
Bridgelux V9-HD 92.70.131.00
2-2211-L,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-2211-L

Diameter: 75 mm
Height: 43 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 13MM 18° 92.70.131.00
SEOUL SAWx15 18° 92.70.131.00
Luminus CXM-14-AC40 20° 92.70.131.00
Lumileds LUXEON CoB 1208 20° 92.70.135.00
Cree CXA1820 15° 92.70.129.00
Citizen CLU038 20° 92.70.131.00
LN01D06324BF-N,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

LN01D06324BF-N

Diameter: 63 mm
Height: 32 mm
Add
LED Light Source Angle Accessory
Cree CXA1830 25° 92.70.129.00
Tridonic SLE G7 13MM 25° 92.70.131.00
Tridonic SLE G7 15MM 25° 92.70.131.00
Luminus CXM-14-AA10 24° 92.70.130.00
3-2040-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-2040-M

Diameter: 85 mm
Height: 51 mm
Add
LED Light Source Angle Accessory
BMTC MA-1919 30W 21° 92.70.131.00
Tridonic SLE G7 15MM 20° 92.70.131.00
Tridonic SLE G7 13MM 20° 92.70.131.00
SEOUL SAWx15 21° 92.70.131.00
BMTC MA-1919 20W 21° 92.70.131.00
OSRAM OPTO SOLERIQ S13 19° 92.70.131.00
OSRAM OPTO SOLERIQ S15 21° 92.70.131.00
Luminus CXM-14-AC40 22° 92.70.131.00
Nichia NFCWD084B-V2 20° 92.70.135.00
Lumileds LUXEON CoB 1208 23° 92.70.135.00
Luminus CXM-11-AC30 19° 92.70.131.00
Nichia NFCWJ108B-V3 21° 92.70.135.00
Nichia NFCWD096B-V3 20° 92.70.135.00
Citizen CLU038 22° 92.70.131.00
Cree CXA1820 21° 92.70.129.00
OSRAM OPTO SOLERIQ S19 22° 92.70.134.00
Nichia NVEWJ048Z-V1 21° 92.70.135.00
Nichia NFCWJ120B-V3 21° 92.70.135.00
Cree CMT1922 21° 92.70.131.00
Lumileds LUXEON CoB 1205 23° 92.70.135.00
Cree CXA1830 22° 92.70.129.00
Bridgelux V9-HD 18° 92.70.131.00
Bridgelux V13B 22° 92.70.131.00
Bridgelux BXRV-DR-1830-H-3000-A-13 22° 92.70.135.00
2-2188-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-2188-M

Diameter: 75 mm
Height: 69.2 mm
Add
LED Light Source Angle Accessory
OSRAM OPTO SOLERIQ S15 36° 92.70.131.00
Tridonic SLE G7 15MM 36° 92.70.131.00
Bridgelux V13B 36° 92.70.131.00
Citizen CLU038 36° 92.70.131.00
Luminus CXM-14-AC40 36° 92.70.131.00
Cree CXA1830 36° 92.70.129.00
3-2046-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-2046-M

Diameter: 95 mm
Height: 55.2 mm
Add
LED Light Source Angle Accessory
Bridgelux BXRV-DR-1830-H-3000-A-13 35° 92.70.135.00
Tridonic SLE G7 15MM 33° 92.70.131.00
Tridonic SLE G7 13MM 30° 92.70.131.00
OSRAM OPTO SOLERIQ S19 38° 92.70.134.00
SEOUL SAWx15 35° 92.70.131.00
Nichia NFCWD096B-V3 32° 92.70.135.00
Nichia NFCWJ108B-V3 35° 92.70.135.00
Nichia NFCWD084B-V2 33° 92.70.135.00
Nichia NFCWJ120B-V3 34° 92.70.135.00
OSRAM OPTO SOLERIQ S13 30° 92.70.131.00
OSRAM OPTO SOLERIQ S15 32° 92.70.131.00
Nichia NVEWJ048Z-V1 35° 92.70.135.00
BMTC MA-1919 20W 36° 92.70.131.00
Luminus CXM-11-AC30 29° 92.70.131.00
Cree CMT1922 33° 92.70.131.00
Cree CXA1830 35° 92.70.129.00
Citizen CLU038 34° 92.70.131.00
Bridgelux V13B 34° 92.70.131.00
3-2547-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-2547-M

Diameter: 85 mm
Height: 51 mm
Add
LED Light Source Angle Accessory
SEOUL SAWx15 36° 92.70.131.00
OSRAM OPTO SOLERIQ S15 36° 92.70.131.00
OSRAM OPTO SOLERIQ S13 36° 92.70.131.00
Nichia NFCWJ108B-V3 36° 92.70.135.00
Luminus CXM-14-AC40 36° 92.70.131.00
Lumileds LUXEON CoB 1208 36° 92.70.135.00
Lumileds LUXEON CoB 1205 36° 92.70.135.00
Cree CMT1922 36° 92.70.131.00
Cree CXA1830 36° 92.70.129.00
Citizen CLU038 36° 92.70.131.00
Bridgelux V13B 36° 92.70.131.00
Tridonic SLE G7 15MM 36° 92.70.131.00
2-1650-A,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1650-A

Diameter: 75 mm
Height: 41 mm
Add
LED Light Source Angle Accessory
Cree CXA1816 18° 92.70.129.00, 92.70.148.00
Lumileds LUXEON CoB 1208 20° 92.70.135.00, 92.70.148.00
Citizen CLU721 15° 92.70.131.00, 92.70.148.00
Luminus CXM-14-AC30 20° 92.70.131.00, 92.70.148.00
2-2010-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-2010-M

Diameter: 75 mm
Height: 43 mm
Add
LED Light Source Angle Accessory
OSRAM OPTO SOLERIQ S13 65° 92.70.131.00
Tridonic SLE G7 13MM 65° 92.70.131.00
Luminus CXM-14-AC40 66° 92.70.131.00
Lumileds LUXEON CoB 1205 60° 92.70.135.00
Cree CXA1830 65° 92.70.129.00
Bridgelux V13B 65° 92.70.131.00
3-2042-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-2042-M

Diameter: 95 mm
Height: 55 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 15MM 15° 92.70.131.00
BMTC MA-1919 20W 14° 92.70.131.00
Tridonic SLE G7 13MM 12° 92.70.131.00
SEOUL SAWx15 14° 92.70.131.00
OSRAM OPTO SOLERIQ S19 16° 92.70.134.00
OSRAM OPTO SOLERIQ S15 13° 92.70.131.00
OSRAM OPTO SOLERIQ S13 12° 92.70.131.00
Nichia NVEWJ048Z-V1 14° 92.70.135.00
Nichia NFCWJ108B-V3 14° 92.70.135.00
Nichia NFCWD096B-V3 13° 92.70.135.00
Nichia NFCWD084B-V2 13° 92.70.135.00
Nichia NFCWJ120B-V3 14° 92.70.135.00
Lumileds LUXEON CoB 1208 14° 92.70.135.00
Luminus CXM-11-AC30 11° 92.70.131.00
Cree CMT1922 14° 92.70.131.00
Lumileds LUXEON CoB 1205 14° 92.70.135.00
Cree CXA1830 13° 92.70.129.00
Citizen CLU038 13° 92.70.131.00
Cree CXA1820 11° 92.70.129.00
Bridgelux V9-HD 92.70.131.00
Bridgelux BXRV-DR-1830-H-3000-A-13 13° 92.70.135.00
Bridgelux V13B 12° 92.70.131.00
2-2214-L,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-2214-L

Diameter: 75 mm
Height: 43 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 13MM 55° 92.70.131.00
SEOUL SAWx15 55° 92.70.131.00
Luminus CXM-14-AC40 55° 92.70.131.00
Lumileds LUXEON CoB 1208 60° 92.70.135.00
Cree CXA1820 60° 92.70.129.00
Citizen CLU038 55° 92.70.131.00

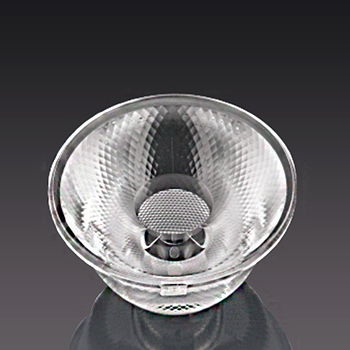

LN01D06337BF-N,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

LN01D06337BF-N

Diameter: 63 mm
Height: 32 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 13MM 36° 92.70.131.00
Tridonic SLE G7 15MM 38° 92.70.131.00
Cree CXA1830 40° 92.70.129.00
Luminus CXM-14-AA10 37° 92.70.130.00
4-2200-L,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

4-2200-L

Diameter: 111 mm
Height: 69.5 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 13MM 15° 92.70.131.00
Tridonic SLE G7 17MM 18°
Tridonic SLE G7 15MM 16° 92.70.131.00
SEOUL SAWx15 15° 92.70.131.00
Luminus CXM-14-AC40 15° 92.70.131.00
Lumileds LUXEON CoB 1208 15° 92.70.135.00
Citizen CLU038 15° 92.70.131.00
Cree CXA1820 15° 92.70.129.00
2-2187-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-2187-M

Diameter: 75 mm
Height: 69.2 mm
Add
LED Light Source Angle Accessory
Bridgelux V13B 25° 92.70.131.00
Citizen CLU038 24° 92.70.131.00
OSRAM OPTO SOLERIQ S15 24° 92.70.131.00
Luminus CXM-14-AC40 25° 92.70.131.00
Tridonic SLE G7 15MM 25° 92.70.131.00
Cree CXA1830 25° 92.70.129.00
4-2267-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

4-2267-M

Diameter: 111 mm
Height: 64.2 mm
Add
LED Light Source Angle Accessory
OSRAM OPTO SOLERIQ S19 40° 92.70.134.00
Tridonic SLE G7 15MM 36° 92.70.131.00
Bridgelux BXRV-DR-1830-H-3000-A-13 35° 92.70.135.00
Luminus CXM-14-AC40 36° 92.70.131.00
OSRAM OPTO SOLERIQ S15 33° 92.70.131.00
OSRAM OPTO SOLERIQ S13 32°
Nichia NFCWD096B-V3 33° 92.70.135.00
Nichia NFCWJ108B-V3 35° 92.70.135.00
Nichia NFCWJ120B-V3 35° 92.70.135.00
Nichia NVEWJ048Z-V1 35° 92.70.135.00
Nichia NFCWD084B-V2 33° 92.70.135.00
Cree CMT1922 35° 92.70.131.00
Lumileds LUXEON CoB 1205 33° 92.70.135.00
Lumileds LUXEON CoB 1208 35° 92.70.135.00
SEOUL SAWx15 34° 92.70.131.00
Luminus CXM-11-AC30 30° 92.70.131.00
Cree CXA2520 40° 92.70.134.00
Cree CXA1816 29° 92.70.129.00
Citizen CLU038 35° 92.70.131.00
BMTC MA-1919 20W 34° 92.70.131.00
Tridonic SLE G7 13MM 33° 92.70.131.00
Bridgelux V9-HD 24° 92.70.131.00
Bridgelux V13B 32° 92.70.131.00
2-1651-A,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1651-A

Diameter: 75 mm
Height: 41 mm
Add
LED Light Source Angle Accessory
Luminus CXM-14-AC30 30° 92.70.131.00, 92.70.148.00
Cree CXA1816 30° 92.70.129.00, 92.70.148.00
Lumileds LUXEON CoB 1208 31° 92.70.135.00, 92.70.148.00
Citizen CLU721 28° 92.70.131.00, 92.70.148.00
3-2322-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-2322-M

Diameter: 85 mm
Height: 51.5 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 13MM 15° 92.70.131.00
Cree CXA1830 15° 92.70.129.00
Lumileds LUXEON CoB 1205 15° 92.70.135.00
Luminus CXM-14-AC40 17° 92.70.131.00
OSRAM OPTO SOLERIQ S13 15° 92.70.131.00
Bridgelux V13B 15° 92.70.131.00
3-2324-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-2324-M

Diameter: 85 mm
Height: 51.5 mm
Add
LED Light Source Angle Accessory
Cree CXA1830 23° 92.70.129.00
Lumileds LUXEON CoB 1205 24° 92.70.135.00
OSRAM OPTO SOLERIQ S13 20° 92.70.131.00
Tridonic SLE G7 13MM 23° 92.70.131.00
Luminus CXM-14-AC40 25° 92.70.131.00
Bridgelux V13B 23° 92.70.131.00
2-2262-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-2262-M

Diameter: 75 mm
Height: 43 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 15MM 17° 92.70.131.00
OSRAM OPTO SOLERIQ S13 17° 92.70.131.00
OSRAM OPTO SOLERIQ S15 17° 92.70.131.00
SEOUL SAWx15 17° 92.70.131.00
Nichia NFCWJ108B-V3 17° 92.70.135.00
Luminus CXM-14-AC40 17° 92.70.131.00
Lumileds LUXEON CoB 1208 17° 92.70.135.00
Lumileds LUXEON CoB 1205 17° 92.70.135.00
Cree CMT1922 17° 92.70.131.00
Cree CXA1830 17° 92.70.129.00
Citizen CLU038 17° 92.70.131.00
Bridgelux V13B 17° 92.70.131.00
2-2076-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-2076-M

Diameter: 70 mm
Height: 75.5 mm
Add
LED Light Source Angle Accessory
OSRAM OPTO SOLERIQ S15 15° 92.70.131.00
Luminus CXM-14-AC40 19° 92.70.131.00
Lumileds LUXEON CoB 1208 18° 92.70.135.00
Citizen CLU038 16° 92.70.131.00
Cree CXA1830 18° 92.70.129.00
Tridonic SLE G7 15MM 15° 92.70.131.00
Bridgelux V13B 15° 92.70.131.00
3-1884-L,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-1884-L

Diameter: 85 mm
Height: 51 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 15MM 36° 92.70.131.00
SEOUL SAWx15 35° 92.70.131.00
Tridonic SLE G7 13MM 34° 92.70.131.00
Lumileds LUXEON CoB 1208 36° 92.70.135.00
Citizen CLU038 33° 92.70.131.00
Luminus CXM-14-AC40 34° 92.70.131.00
Cree CXA1820 32° 92.70.129.00
2-1779-L,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1779-L

Diameter: 75 mm
Height: 43 mm
Add
LED Light Source Angle Accessory
SEOUL SAWx15 40° 92.70.131.00
Tridonic SLE G7 13MM 38° 92.70.131.00
Tridonic SLE G7 15MM 40° 92.70.131.00
Luminus CXM-14-AC40 40° 92.70.131.00
Lumileds LUXEON CoB 1208 40° 92.70.135.00
Citizen CLU038 38° 92.70.131.00
Cree CXA1820 38° 92.70.129.00
3-2044-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-2044-M

Diameter: 95 mm
Height: 55.2 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 15MM 28° 92.70.131.00
Tridonic SLE G7 13MM 25° 92.70.131.00
OSRAM OPTO SOLERIQ S19 30° 92.70.134.00
Nichia NFCWD096B-V3 26° 92.70.135.00
Nichia NVEWJ048Z-V1 26° 92.70.135.00
Cree CMT1922 26° 92.70.131.00
Lumileds LUXEON CoB 1205 25° 92.70.135.00
Lumileds LUXEON CoB 1208 27° 92.70.135.00
SEOUL SAWx15 26° 92.70.131.00
Bridgelux V13B 25° 92.70.131.00
Bridgelux BXRV-DR-1830-H-3000-A-13 26° 92.70.135.00
OSRAM OPTO SOLERIQ S13 25° 92.70.131.00
Nichia NFCWJ108B-V3 27° 92.70.135.00
Nichia NFCWJ120B-V3 27° 92.70.135.00
Nichia NFCWD084B-V2 25° 92.70.135.00
Luminus CXM-11-AC30 24° 92.70.131.00
OSRAM OPTO SOLERIQ S15 26° 92.70.131.00
Cree CXA1830 25° 92.70.129.00
Citizen CLU038 25° 92.70.131.00
2-1778-L,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1778-L

Diameter: 75 mm
Height: 43 mm
Add
LED Light Source Angle Accessory
Citizen CLU038 27° 92.70.131.00
Cree CXA1820 26° 92.70.129.00
Tridonic SLE G7 15MM 26° 92.70.131.00
Luminus CXM-14-AC40 27° 92.70.131.00
SEOUL SAWx15 28° 92.70.131.00
Tridonic SLE G7 13MM 25° 92.70.131.00
Lumileds LUXEON CoB 1208 29° 92.70.135.00
2-1777-L,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1777-L

Diameter: 75 mm
Height: 43 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 15MM 18° 92.70.131.00
Luminus CXM-14-AC40 18° 92.70.131.00
SEOUL SAWx15 18° 92.70.131.00
Tridonic SLE G7 13MM 15° 92.70.131.00
Luminus CXM-14-AC30 18° 92.70.131.00
Lumileds LUXEON CoB 1208 19° 92.70.135.00
Cree CXA1820 15° 92.70.129.00
Citizen CLU038 16° 92.70.131.00
3-2326-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-2326-M

Diameter: 85 mm
Height: 51.5 mm
Add
LED Light Source Angle Accessory
Cree CXA1830 36° 92.70.129.00
Tridonic SLE G7 13MM 33° 92.70.131.00
Luminus CXM-14-AC40 36° 92.70.131.00
OSRAM OPTO SOLERIQ S13 33° 92.70.131.00
Lumileds LUXEON CoB 1205 36° 92.70.135.00
Bridgelux V13B 33° 92.70.131.00
2-2263-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-2263-M

Diameter: 75 mm
Height: 43 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 15MM 24° 92.70.131.00
SEOUL SAWx15 24° 92.70.131.00
Nichia NFCWJ108B-V3 24° 92.70.135.00
OSRAM OPTO SOLERIQ S15 24° 92.70.131.00
OSRAM OPTO SOLERIQ S13 G2 24° 92.70.131.00
Luminus CXM-14-AC40 24° 92.70.131.00
Lumileds LUXEON CoB 1208 24° 92.70.135.00
Lumileds LUXEON CoB 1205 24° 92.70.135.00
Cree CMT1922 24° 92.70.131.00
Cree CXA1830 24° 92.70.129.00
Citizen CLU038 24° 92.70.131.00
Bridgelux V13B 24° 92.70.131.00
2-2077-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-2077-M

Diameter: 70 mm
Height: 75.1 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 15MM 23° 92.70.131.00
OSRAM OPTO SOLERIQ S15 23° 92.70.131.00
Lumileds LUXEON CoB 1208 24° 92.70.135.00
Bridgelux V13B 23° 92.70.131.00
Cree CXA1830 23° 92.70.129.00
Citizen CLU038 24° 92.70.131.00
Luminus CXM-14-AC40 24° 92.70.131.00
3-2033-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-2033-M

Diameter: 85 mm
Height: 51.2 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 13MM 15° 92.70.131.00
OSRAM OPTO SOLERIQ S15 14° 92.70.131.00
Nichia NFCWD096B-V3 14° 92.70.135.00
Tridonic SLE G7 15MM 15° 92.70.131.00
OSRAM OPTO SOLERIQ S19 16° 92.70.134.00
SEOUL SAWx15 15° 92.70.131.00
OSRAM OPTO SOLERIQ S13 13° 92.70.131.00
Nichia NFCWJ108B-V3 15° 92.70.135.00
Lumileds LUXEON CoB 1208 16° 92.70.135.00
Nichia NVEWJ048Z-V1 15° 92.70.135.00
Nichia NFCWJ120B-V3 15° 92.70.135.00
Nichia NFCWD084B-V2 14° 92.70.135.00
Luminus CXM-11-AC30 13° 92.70.131.00
Cree CXA1830 14° 92.70.129.00
Cree CMT1922 15° 92.70.131.00
Bridgelux V13B 14° 92.70.131.00
Luminus CXM-14-AC40 16° 92.70.131.00
Lumileds LUXEON CoB 1205 15° 92.70.135.00
Cree CXA1820 13° 92.70.129.00
BMTC MA-1919 30W 15° 92.70.131.00
Citizen CLU038 14° 92.70.131.00
BMTC MA-1919 20W 15° 92.70.131.00
Bridgelux BXRV-DR-1830-H-3000-A-13 15° 92.70.135.00
Bridgelux V9-HD 11° 92.70.131.00
3-1880-L,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-1880-L

Diameter: 85 mm
Height: 51 mm
Add
LED Light Source Angle Accessory
SEOUL SAWx15 15° 92.70.131.00
Citizen CLU038 15° 92.70.131.00
Tridonic SLE G7 13MM 15° 92.70.131.00
Luminus CXM-14-AC40 15° 92.70.131.00
Tridonic SLE G7 15MM 15° 92.70.131.00
Lumileds LUXEON CoB 1208 15° 92.70.135.00
Cree CXA1820 13° 92.70.129.00
4-2275-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

4-2275-M

Diameter: 111 mm
Height: 64.1 mm
Add
LED Light Source Angle Accessory
SEOUL SAWx15 19° 92.70.131.00
Philips SLM 1208 G7 L15 20° 92.70.131.00
Philips SLM 1205 G7 L13 20° 92.70.131.00
OSRAM OPTO SOLERIQ S15 20° 92.70.131.00
OSRAM OPTO SOLERIQ S19 23° 92.70.134.00
OSRAM OPTO SOLERIQ S13 19° 92.70.131.00
Nichia NFCWJ108B-V3 21° 92.70.135.00
Nichia NFCWD096B-V3 20° 92.70.135.00
Luminus CXM-11-AC30 19° 92.70.131.00
Luminus CXM-14-AC40 21° 92.70.131.00
Nichia NFCWD084B-V2 18° 92.70.135.00
Nichia NFCWJ120B-V3 20° 92.70.135.00
Lumileds LUXEON CoB 1208 18° 92.70.135.00
Nichia NVEWJ048Z-V1 19° 92.70.135.00
Lumileds LUXEON CoB 1205 17° 92.70.135.00
Cree CMT1922 20° 92.70.131.00
Bridgelux V13B 18° 92.70.131.00
Bridgelux BXRV-DR-1830-H-3000-A-13 19° 92.70.135.00
BMTC MA-1919 20W 20° 92.70.131.00
Citizen CLU038 18° 92.70.131.00
Cree CXA1820 18° 92.70.129.00
Cree CXA2520 22° 92.70.134.00
Bridgelux V9-HD 18° 92.70.131.00
2-1794-N,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1794-N

Diameter: 75 mm
Height: 53.5 mm
Add
LED Light Source Angle Accessory
Cree CXA1830 27° 97.70.141.00, 92.70.129.00
Cree CMT1922 27° 97.70.141.00, 92.70.131.00, 99.02.73.172
Tridonic SLE G7 15MM 28° 97.70.141.00, 92.70.131.00, 99.02.73.172
Tridonic SLE G7 13MM 28° 97.70.141.00, 92.70.131.00, 99.02.73.172
OSRAM OPTO SOLERIQ S15 29° 97.70.141.00, 92.70.131.00
OSRAM OPTO SOLERIQ S13 25° 97.70.141.00, 92.70.131.00
Nichia NVEWJ048Z-V1 27° 97.70.141.00, 92.70.135.00
Nichia NFCWD096B-V3 27° 97.70.141.00, 92.70.135.00
Nichia NFCWD084B-V3 27° 97.70.141.00, 92.70.135.00
Nichia NFCWJ108B-V3 28° 97.70.141.00, 92.70.135.00
Nichia NFCWJ120B-V3 28° 97.70.141.00, 92.70.135.00
Luminus CXM-14-AC40 29° 97.70.141.00, 92.70.131.00
Luminus CLM-14-AC30 30° 97.70.141.00, 92.70.131.00
Nichia NFDWJ130B-V3 28° 97.70.141.00, 92.70.135.00
Luminus CXM-11-AC30 26° 97.70.141.00, 92.70.131.00, 99.02.73.172
Lumileds LUXEON CoB 1205 26° 97.70.141.00, 92.70.135.00
Luminus CHM-9 XH20 25° 97.70.141.00, 92.70.131.00
Citizen CLU720 24° 97.70.141.00, 92.70.131.00, 99.02.73.172
Cree CXA1816 26° 97.70.141.00, 92.70.129.00
Bridgelux V9-HD 24° 97.70.141.00, 92.70.131.00, 99.02.73.172
Bridgelux V13B 27° 97.70.141.00, 92.70.131.00
Citizen CLU710 24° 97.70.141.00, 92.70.131.00
Citizen CLU038 25° 97.70.141.00, 92.70.131.00
3-2328-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-2328-M

Diameter: 85 mm
Height: 51.5 mm
Add
LED Light Source Angle Accessory
Luminus CXM-14-AC40 57° 92.70.131.00
OSRAM OPTO SOLERIQ S13 60° 92.70.131.00
Lumileds LUXEON CoB 1205 60° 92.70.135.00
Cree CXA1830 60° 92.70.129.00
Tridonic SLE G7 13MM 60° 92.70.131.00
Bridgelux V13B 60° 92.70.131.00
2-1674-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-1674-M

Diameter: 75 mm
Height: 43 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 15MM 18° 92.70.131.00
OSRAM OPTO SOLERIQ S15 16° 92.70.131.00
SEOUL SAWx15 15° 92.70.131.00
OSRAM OPTO SOLERIQ S13 14° 92.70.131.00
Nichia NFCWD096B-V3 15° 92.70.135.00
Nichia NFCWJ108B-V3 17° 92.70.135.00
Nichia NFCWD084B-V2 15° 92.70.135.00
Nichia NVEWJ048Z-V1 15° 92.70.135.00
Nichia NFCWJ120B-V3 17° 92.70.135.00
Luminus CXM-11-AC30 13° 92.70.131.00
Luminus CXM-14-AC40 17° 92.70.131.00
Bridgelux V13B 15° 92.70.131.00
Bridgelux BXRV-DR-1830-H-3000-A-13 16° 92.70.135.00
BMTC MA-1919 30W 15° 92.70.131.00
Lumileds LUXEON CoB 1208 18° 92.70.135.00
Lumileds LUXEON CoB 1205 15° 92.70.135.00
Cree CMT1922 16° 92.70.131.00
Cree CXA1830 15° 92.70.129.00
Citizen CLU038 15° 92.70.131.00
Bridgelux V9-HD 10° 92.70.131.00
2-2264-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-2264-M

Diameter: 75 mm
Height: 43 mm
Add
LED Light Source Angle Accessory
Tridonic SLE G7 15MM 36° 92.70.131.00
OSRAM OPTO SOLERIQ S15 36° 92.70.131.00
SEOUL SAWx15 36° 92.70.131.00
OSRAM OPTO SOLERIQ S13 36° 92.70.131.00
Nichia NFCWJ108B-V3 36° 92.70.135.00
Luminus CXM-14-AC40 36° 92.70.131.00
Lumileds LUXEON CoB 1208 36° 92.70.135.00
Lumileds LUXEON CoB 1205 36° 92.70.135.00
Cree CXA1830 36° 92.70.129.00
Cree CMT1922 36° 92.70.131.00
Citizen CLU038 36° 92.70.131.00
Bridgelux V13B 36° 92.70.131.00
2-2004-M,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

2-2004-M

Diameter: 75 mm
Height: 43 mm
Add
LED Light Source Angle Accessory
OSRAM OPTO SOLERIQ S13 15° 92.70.131.00
Tridonic SLE G7 13MM 15° 92.70.131.00
Luminus CXM-14-AC40 19° 92.70.131.00
Lumileds LUXEON CoB 1205 15° 92.70.135.00
Cree CXA1830 18° 92.70.129.00
Bridgelux V13B 15° 92.70.131.00
3-1882-L,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

3-1882-L

Diameter: 85 mm
Height: 51 mm
Add
LED Light Source Angle Accessory
SEOUL SAWx15 24° 92.70.131.00
Tridonic SLE G7 13MM 22° 92.70.131.00
Tridonic SLE G7 15MM 24° 92.70.131.00
Luminus CXM-14-AC40 24° 92.70.131.00
Lumileds LUXEON CoB 1208 24° 92.70.135.00
Citizen CLU038 23° 92.70.131.00
Cree CXA1820 24° 92.70.129.00
4-2202-L,lens, reflectors, aluminum reflectors, light reflectors, LED reflectors, LED reflector design, LED spot reflectors

4-2202-L

Diameter: 111 mm
Height: 69.5 mm
Add
LED Light Source Angle Accessory
Lumileds LUXEON CoB 1208 23° 92.70.135.00
Tridonic SLE G7 17MM 23°
Tridonic SLE G7 13MM 22° 92.70.131.00
SEOUL SAWx15 23° 92.70.131.00
Tridonic SLE G7 15MM 22° 92.70.131.00
Luminus CXM-14-AC40 23° 92.70.131.00
Citizen CLU038 23° 92.70.131.00
Cree CXA1820 23° 92.70.129.00
Search Product
-

Application

Spot Light
Down Light
Linear Light
Wall Washer
Street Light
Flood Light
High Bay
Automobile Lamp
Holder
Optical Lens
Honeycomb
Anti-glare Ring
